Description

** This belt can be ordered in a custom width of your choice. Please contact us for a quotation. **

Descriptions

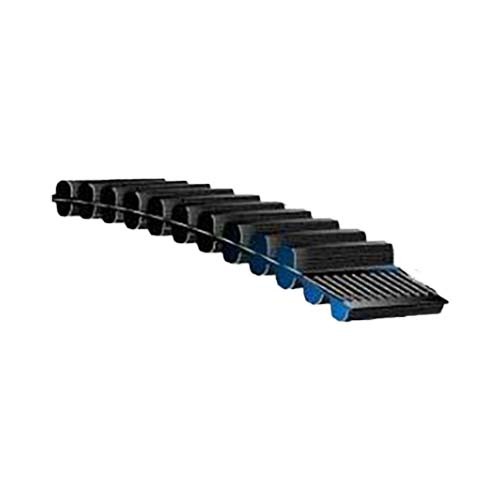

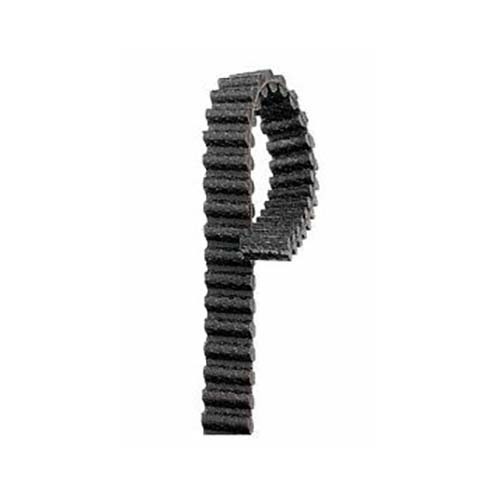

  • Due to its double and directly opposite teeth, Twin Power® synchronous belts ensure high loading capacity on contra-rotating drives and ensure smooth running and high flexibility
  • Gates Twin Power® GT2 belt has at least twice the offer rating of Gates Twin Power® HTD® belts. It is characterised by extraordinary load-carrying offer and high tooth jump resistance, thus ensuring a positive non-slip drive. In addition, it runs at very low noise.

Construction

  • Notch depth is in proportion to the cross-section to ensure perfect stability
  • GT® (Gates Tooth) modified curvilinear tooth profile
  • Neoprene body provide protection against grime, grease, oil and moisture
  • Fibreglass tensile cords
  • Tough nylon facing protects and reinfonces the tooth surface.

Advantages

  • Twin Power® can transmit up to 100% of its maximum rated load from either side of the belt; alternatively, it can transmit a load on both sides – provided the sum of the loads does not exceed the maximum capacity
  • Non-slip positive drive
  • Runs at low noise
  • Compact, light-weight, and cost e?ective drives
  • High tooth jump resistance
  • High efficiency positive drive
  • Maintenance free
  • No lubrication.

Temperature Range

  • Range: -30°C to +100°C

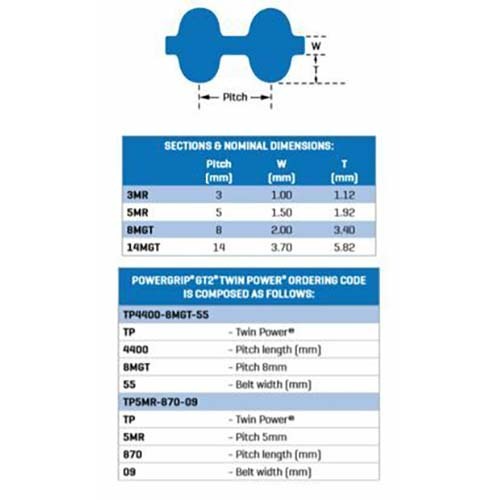

Specifications

  • AIMS SKU A0026111
  • Brand Gates
  • Model Number 9232-50057
  • Barcode Number 5414465085888
  • Timing Belt Code TP1760-8MGT-20
  • Length (mm) 1760
  • Belt Width (mm) 20
  • Number of Teeth 220
  • Teeth Depth (mm) 3.4
  • Pitch (mm) 8
  • Depth (mm) 8.8
  • Type Twin Power Belt - Double Sided Synch
  • System of Measurement Metric
  • Material Fibreglass Cord
  • Section 8MGT
  • Series Gates PowerGrip GT2 Twin Power Timing Belt
SKU: A0026111

Gates TP1760-8MGT-20 (9232-50057) Twin Power GT2 Double Sided Synchronous Belt

Twin Power Belt - Double Sided - Synchronous

$275.07
RRP $443.64
SAVE $168.57 (38%)
