Description

** This belt can be ordered in a custom width of your choice. Please contact us to request for a quotation **

Descriptions

  • Due to its double and directly opposite teeth, Twin Power® synchronous belts ensure high loading capacity on contra-rotating drives and ensure smooth running and high flexibility
  • Gates Twin Power® GT2 belt has at least twice the offer rating of Gates Twin Power® HTD® belts. It is characterised by extraordinary load-carrying offer and high tooth jump resistance, thus ensuring a positive non-slip drive. In addition, it runs at very low noise.

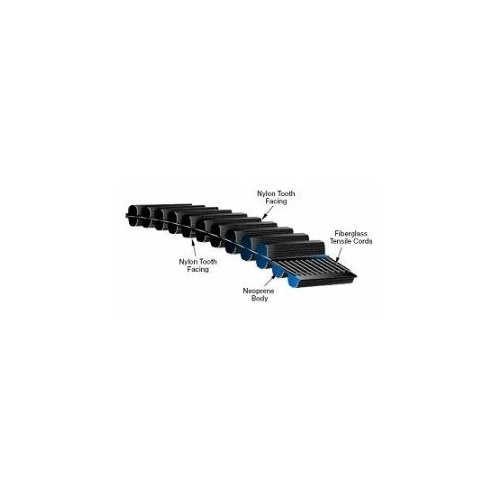

Construction

  • Notch depth is in proportion to the cross-section to ensure perfect stability
  • GT® (Gates Tooth) modified curvilinear tooth profile
  • Neoprene body provide protection against grime, grease, oil and moisture
  • Fibreglass tensile cords
  • Tough nylon facing protects and reinfonces the tooth surface.

Advantages

  • Twin Power® can transmit up to 100% of its maximum rated load from either side of the belt; alternatively, it can transmit a load on both sides – provided the sum of the loads does not exceed the maximum capacity
  • Non-slip positive drive
  • Runs at low noise
  • Compact, light-weight, and cost e?ective drives
  • High tooth jump resistance
  • High efficiency positive drive
  • Maintenance free
  • No lubrication.

Temperature Range

  • Range: -30°C to +100°C

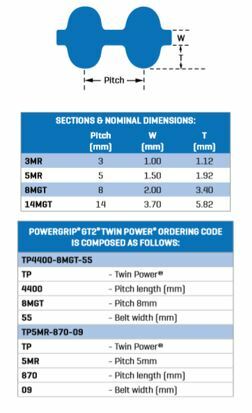

Specifications

  • AIMS SKU A0026009
  • Brand Gates
  • Model Number 9232-0116
  • Barcode Number 72053612523
  • Timing Belt Code TP1610-14MGT-55
  • Length (mm) 1610
  • Belt Width (mm) 55
  • Number of Teeth 115
  • Teeth Depth (mm) 5.82
  • Pitch (mm) 14
  • Depth (mm) 15.34
  • Type Twin Power Belt - Double Sided Synch
  • System of Measurement Metric
  • Material Fibreglass Cord
  • Section 14MGT
  • Series Gates PowerGrip GT2 Twin Power Timing Belt
SKU: A0026009

Gates TP1610-14MGT-55 (9232-0116) Twin Power GT2 Double Sided Synchronous Belt

Twin Power Belt - Double Sided - Synchronous

$937.32
RRP $2,267.71
SAVE $1,330.39 (59%)
