Description

Descriptions

  • Gates Super HC® Powerband® offers a solution for drives where single belts vibrate, turn offer or jump off the pulleys Gates Super HC® Powerband® is especially developed for drives subjected to pulsating loads

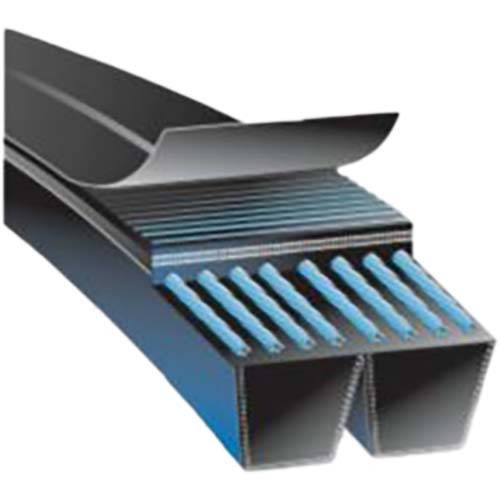

  • It consists of several V-belts joined together by a permanent, high strength tie band, thus being tougher than all the belts taken separately

Construction

  • Narrow cross-section
  • Strong tie band joins the back of all belts
  • Fibre-loaded compound for improved belt stability
  • Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
  • Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
  • Flex-Weave® cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
  • Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
  • Static conductive - ISO 1813 and RMA IP3-3

Advantages

  • Better resistance to vibrations
  • High stability and smooth running on the toughest drives
  • Important design economies possible
  • Premium performance
  • Excellent performance/cost ratio
  • Suitable for dirty/dusty environment
  • Match free system: RMA belts meet Gates V80® tolerances, can be installed without matching
  • Back idlers can be used
  • Tolerates mild clutching or drive slip

Temperature Range

  • Range: -35°C to +80°C

Specifications

  • AIMS SKU A0022118
  • Brand Gates
  • Model Number 9381-58504
  • Barcode Number 5414465482298
  • V Belt Code 4/SPC8500
  • Length (mm) 8500
  • Ribs 4
  • Pitch (mm) 25.5
  • Top Width (mm) 88
  • Application Heavy-Duty Belt
  • Depth (mm) 18
  • Type Powerband - ISO - Narrow Section
  • System of Measurement Metric
  • Material Flex-Bonded Polyester Cord
  • Section SPC
  • Application Heavy-Duty Belt
  • Series Gates Super HC PowerBand Belt
SKU: A0022118 On Sale

Gates 4/SPC8500 (9381-58504) Super HC Narrow Section PowerBand V Belt

Powerband - ISO - Narrow Section - Heavy Duty Belt

$1,131.16
$1,330.78
