*** This is old stock but in good condition. There are no returns. You are welcome to inspect at our office if required..***

Gates Super HC Narrow Section V Belt

  • Pioneered by Gates, these narrow cross-sections can transmit up to 3 times the power of the classical cross-sections (A, B, C & D) in the same amount of drive space
  • Super HC® also manages speed ranges that a classical V-belt cannot handle. Suitable for all industrial applications, particularly where space, weight and power capacity are critical.
  • Designed for heavy industry and the harsh demands of the mining market, Super HC® is Gates most popular V-belt construction

Construction

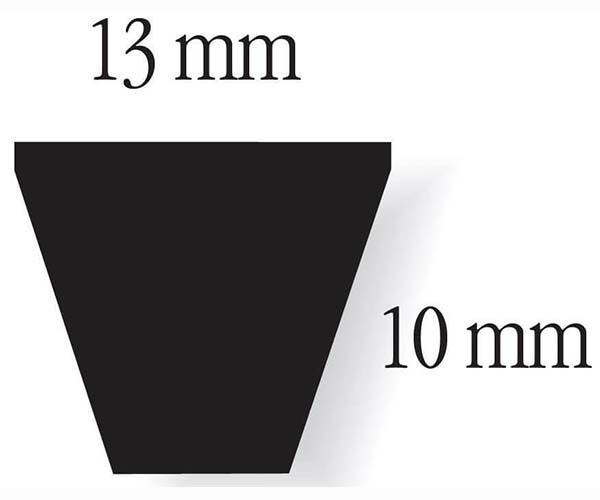

  • Narrow cross-section
  • Fibre-loaded compound for improved belt stability

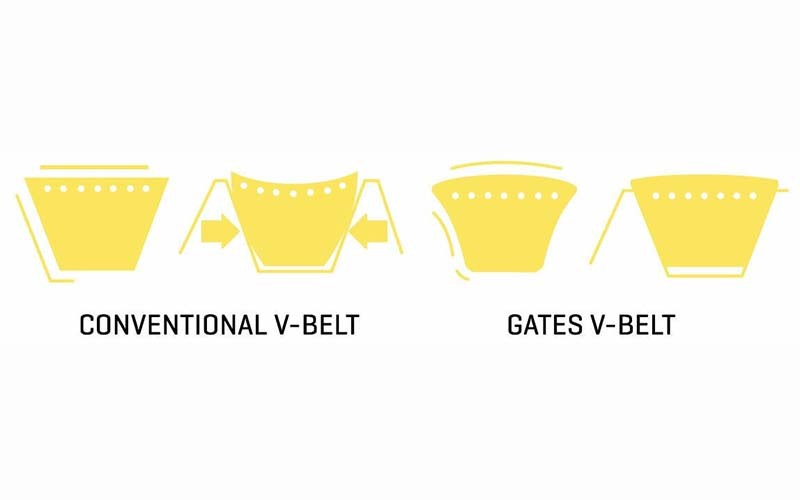

  • Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
  • Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
  • Flex-Weave® cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
  • Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
  • Static conductive - ISO 1813 and RMA IP3-3

Advantages

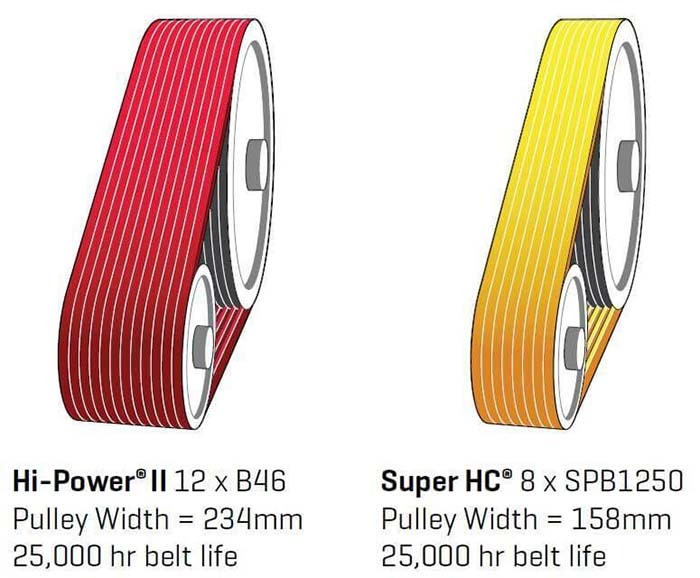

  • Up to 3 times more power in the same space or same power in 1/3 to 1/2 less space than classical belts
  • Cost and space savings
  • Longer belt life
  • Suitable for dirty/dusty environments
  • Match free system: all sizes meet Gates V80® tolerances, can be installed without matching
  • Back idlers can be used
  • Tolerates mild clutching or drive slip

Temperature Range

  • Range: -35°C to +80°C

Specifications

  • AIMS SKU CA0018617
  • Brand Gates
  • Model Number 9333-01320
  • Barcode Number 5412571078503
SKU: CA0018617

Gates SPA1320 Super HC Wrapped Narrow Cross Section V-Belt (9333-01320)

Gates Wrapped, Narrow Cross-Section V Belt
