Description

Gates Powerband - Predator - RMA Narrow Section

  • Gates Predator Powerband offers a solution for drives where single belts vibrate, turn offer, or jump off the pulleys.
  • It consists of several V-belts joined together by a permanent, high strength tie band, thus being tougher than all the belts taken separately.
  • Predator Powerband is especially designed for demanding applications and harsh environments, offering a high resistance to vibration.
  • Classical B and C sections are available on request.

About Predator Matching System

  • Predator belts have a matching system which must be used on multiple belt drives.
  • This applies to both Single and Powerband versions of Predator belts.
  • Predator belts are marked with a match/group number between 46 to 54 and each belt on a drive must have the same match/ group number.
  • Each matching number refers to a length tolerance range.
  • The limited stretch characteristic of the Predator belts makes it necessary to match them in this way.
  • If matched belts are not used then it will severely impact performance and life.

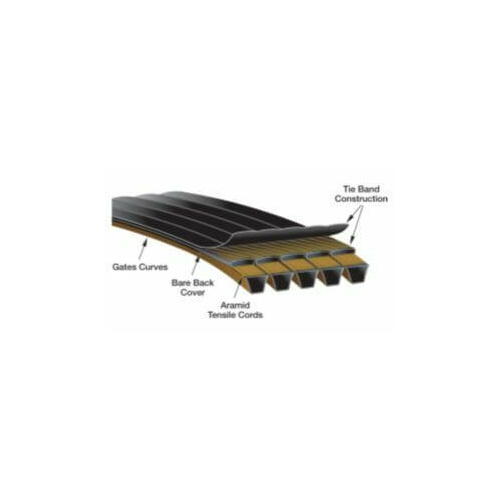

Construction

  • Fibre-loaded compound for improved belt stability
  • Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear, and increased belt life
  • Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
  • Static conductive - ISO 1813 (SPB & SPC Predator Powerbands only)

Advantages

  • High stability and smooth running on the toughest drives
  • Maintenance free
  • Up to 2.2 times more offer than standard V-belts
  • Aramid tensile cords easily handle shock loads
  • Up to 35% reduced drive cost
  • Up to 67% reduced drive width
  • Up to 50% reduced drive weight
  • Double layer bare back cover protects against slippage and punctures
  • No increase in shaft load
  • Replace MTO 8V drives with standard SPC pulleys
  • Reduce overhung loads
  • No need for constant re-tensioning
  • Excellent problem solver
  • Back idlers can be used

Temperature Range

  • Range: -35°C to +80°C

Specifications

  • AIMS SKU A0022638
  • Brand Gates
  • Model Number 9181-2132
  • Barcode Number 72053476804

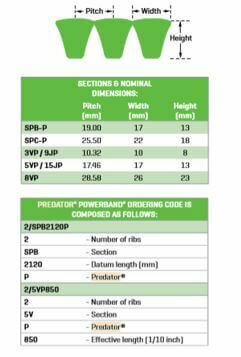

  • Belt Code 2/5VP1320
  • Length (inch) 132
  • Ribs 2
  • Top Width (mm) 34
  • Pitch (mm) 17.46
  • Depth (mm) 13
  • Type Powerband - Predator RMA Narrow Section
  • System of Measurement Imperial
  • Material Flex-Bonded Aramid
  • Section 5V
  • Application Heavy-Duty Belt
  • Series Gates Predator Powerband Belt
SKU: A0022638 On Sale

Gates 2/5VP1320 (9181-2132) Predator Narrow Section PowerBand Belt

$241.94
$284.64
