Description

***Minimum order of 99.97m ***

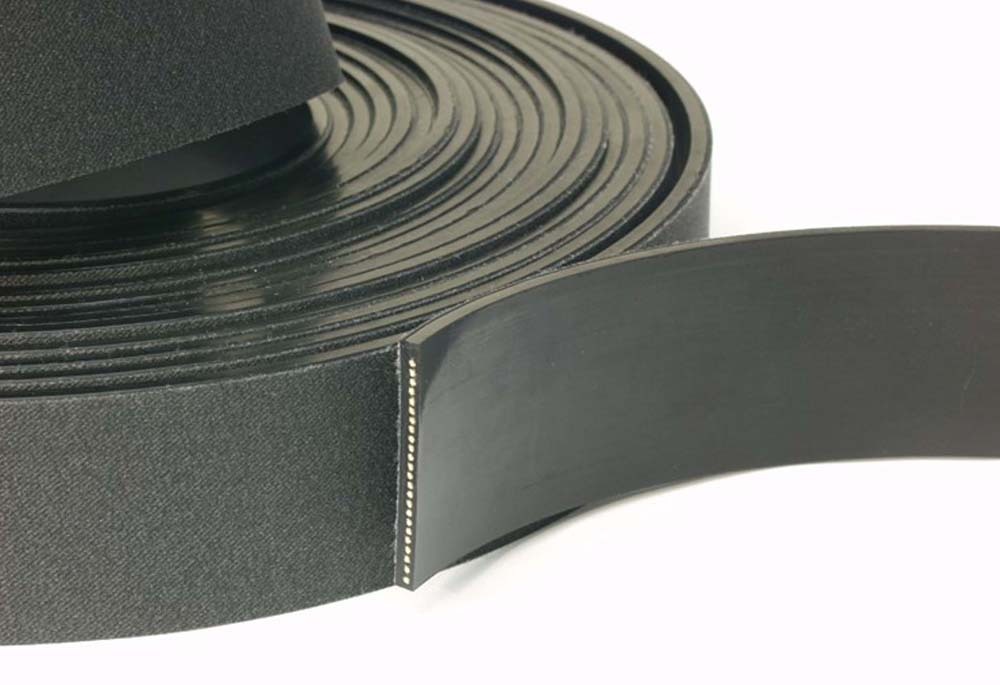

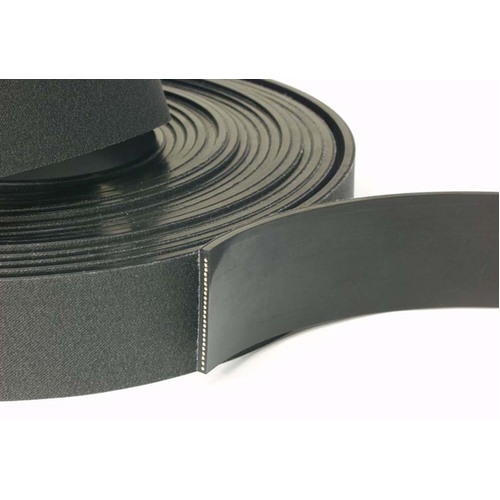

Gates F160 Live Roller Drive Belt (Thermoplastic Polyurethane Belt)

About F160 Live Roller Drive Belt

  • High speed and Durable Intralogistics Belt Solution.
  • Our advancements in materials science, design engineering and processing technologies allow Gates to deliver a high quality and performance live roller belt to operate reliably at high speed.
  • Aramid reinforcement ensures a safe and longer lifespan operation for our customers’ warehouse and distribution conveyors.
  • The F160 belt is an open ended flat belt with a high grip top side to the live rollers and a low friction and anti-static fabric bottom side to improve safety and reliability.
  • Gates® F160 belts are designed to meet the specific needs of demanding, high-performance applications in automated warehouse systems.
  • The F160 belt combines the durability of top-quality with a reliable partnership, making Gates the number one choice for polyurethane flat synchronous belts.
  • You can be confident in F160’s reliability for your high speed roller drives.

Features and Benefits

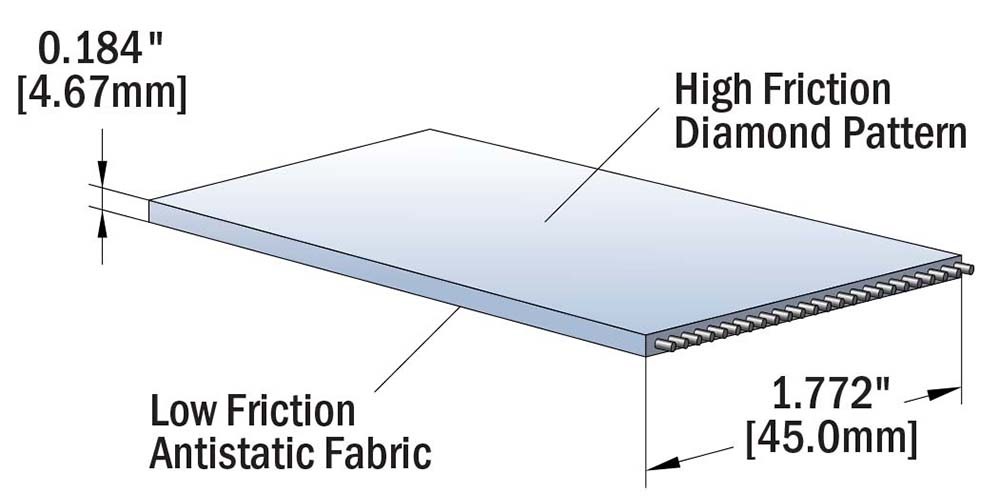

  • High friction, knurled diamond pattern on top ensures high grip and less slip on the rollers.
  • Low friction antistatic fabric on the bottom prevents static buildup.
  • Aramid cord design for lower stretch and longer life compared to competitor belts.
  • Designed to be spliced with OEM equipment.
  • Available in roll lengths up to 660 ft. (200 metres). Contact AIMS for assistance.

Product Specifications

METRIC IMPERIAL
Standard Thickness 4.7 +/- 0.2 mm 0.184 +/-0.008 in
Standard Roll Length* up to 150 m 500 ft
Standard Color Black Black
Cord Aramid Aramid
Minimum Pulley Diameter 100 mm 3.94 in
Fda/Eu Approval No No
Polyurethane 92° Shore A 92° Shore A
Top Surface Knurled Polyurethane Knurled Polyurethane
Bottom Surface Antistatic Fabric Antistatic Fabric
Operating Temperature -5°C to +70°C +23°F to 158°F
Splice Interleaved finger heat welded Interleaved finger heat welded
Recommend Finger Length 155 mm (min.) 6.1 in (min.)

Technical Data

Standard Width 45 +0/-1 mm 1.77 +0/-0.04 in
Ultimate Tensile Strength 33300 N 7490 lbf
Allowable Belt Tension 4360 N 980 lbf
Specific Belt Weight 0.24 kg/m 0.16 lb/ft
Specific Belt Stiffness 19000 N/mm 108000 lb/in

Specifications

  • AIMS SKU A0159718
  • Brand Gates
  • Model Number GCB15500
SKU: A0159718 On Sale

Gates GCB15500 F160 Live Roller Drive Belt x 99.97m

Gates F160 Live Roller Drive Belt (TPU Belt)

$7,906.07
$10,541.43
