Description

Predator Heavy Duty, Wrapped, Aramid Cord V Belt

  • Gates Predator V-belts are the markets leading V-belts.
  • They are unique and unrivalled in their extreme robustness and high load carrying capability.
  • They are excellent problem solvers that perform well in harsh environments and in extremely demanding applications where standard V-belts have performance issues.
  • The Predator difference is in the construction: having the highest offer density of any V-belt and half the stretch of standard Gates belts because of the use of high strength, high modulus aramid tensile cords.

About Predator Matching System

  • Predator belts have a matching system which must be used on multiple belt drives.
  • This applies to both Single and Powerband versions of Predator belts.
  • Predator belts are marked with a match/group number between 46 to 54 and each belt on a drive must have the same match/ group number.
  • Each matching number refers to a length tolerance range.
  • The limited stretch characteristic of the Predator belts makes it necessary to match them in this way.
  • If matched belts are not used then it will severely impact performance and life.

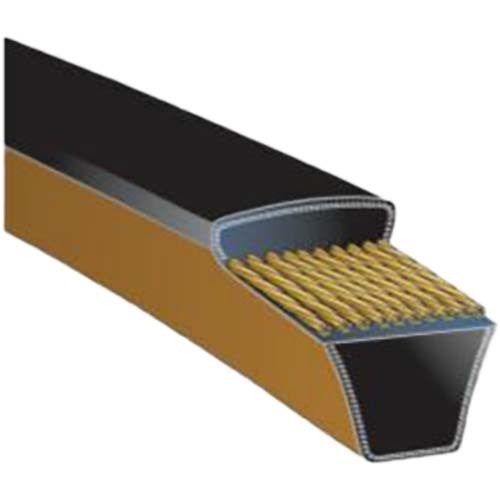

Construction

  • Classical and Narrow cross-sections.
  • Flex bonded aramid tensile cords.
  • Double layer bare back fabric cover.
  • Fibre-loaded compound for improved belt stability.
  • Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life.
  • Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage.

Advantages

  • Maintenance free
  • Up to 2.2 times more offer than standard V-belts
  • Aramid tensile cords easily handle shock loads
  • Up to 35% reduced drive cost
  • Up to 67% reduced drive width
  • Up to 50% reduced drive weight
  • Double layer bare back cover protects against slippage and punctures
  • No increase in shaft load
  • Replace MTO 8V pulleys with standard SPC pulleys
  • Reduce overhung loads
  • No need for constant re-tensioning
  • Excellent problem solver
  • Back idlers can be used.

Temperature Range

  • Range: -35°C to +80°C

Specifications

  • AIMS SKU A0018135
  • Brand Gates
  • Model Number 9187-0105
  • Barcode Number 770075138433

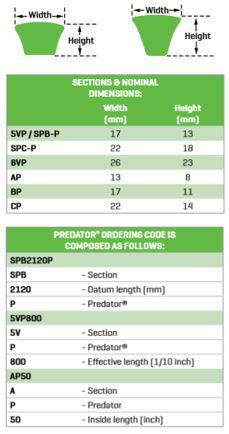

  • Belt Code CP105
  • Section C
  • Height (mm) 14
  • Top Width (mm) 22
  • Outside Length (mm) 2770
  • Datum Length (mm) 2740
  • Type Predator V-Belt - Classical Section
  • System of Measurement Imperial
  • Material Flex-Bonded Aramid
  • Application Heavy-Duty Belt
  • Series Gates Predator Single Belt
SKU: A0018135 On Sale

Gates CP105 (9187-0105) Predator Classical Section V Belt

Predator Heavy Duty, Wrapped, Aramid Cord V Belt - CP

$142.56
$190.08
