Description

Gates Tri-Power® V Belt is built for superior performance on heavy duty drives of classical cross-section.

The raw edge construction and special notch design makes the Tri-Power® belt especially suited for drives requiring small diameter pulleys and back idlers.

The ethylene EPDM compound allows the belt to handle extreme temperatures up to +121°C.

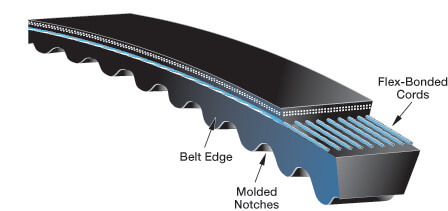

Construction

  • Classical cross-section.
  • Exclusive ethylene EPDM rubber compound for increased temperature range to resist cracking.
  • Fibre-loaded compound for improved belt stability.
  • Raw edge construction.
  • The moulded notch pattern also reduces noise.
  • Precision-ground sidewalls give a uniform wedging action.
  • Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing.
  • Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage.
  • Static conductive - ISO 1813 and RMA IP3-3.

Advantages

  • 15% capacity increase over wrapped belts.
  • Increase efficiency up to 3% over wrapped belts.
  • Use smaller diameter pulleys than wrapped belts.
  • Moulded notches reduce and evenly distribute thermal and bending stresses.
  • Match free system: all sizes meet Gates V80® tolerances, can be installed without matching.
  • Back idlers can be used.

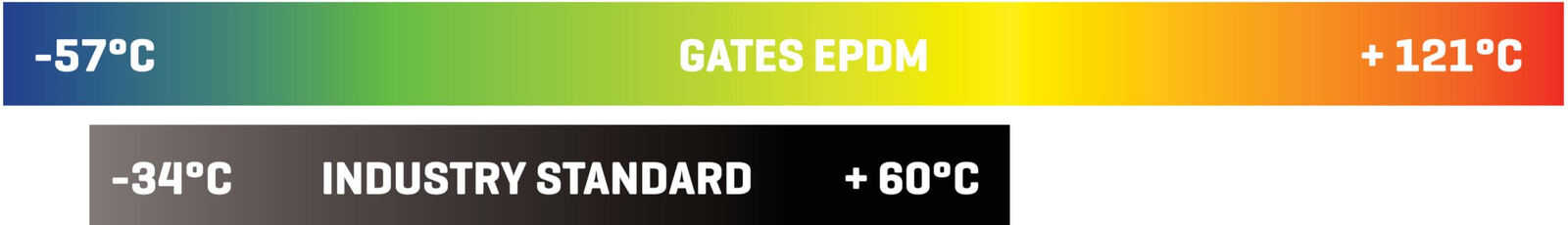

Temperature Range

-57°C to +121°C



AIMS Industrial Supplies Is an Authorised Gates V Belt Distributor

Specifications

  • AIMS SKU A0018236
  • Brand Gates
  • Model Number 9013-2025
  • Barcode Number 72053978773
  • V-Belt Code BX25
  • Length (mm) 720
  • Top Width (mm) 17
  • Depth (mm) 11
  • Effective Length (mm) 714
  • Type Tri-Power Notched Belt-Classical Section
  • System of Measurement Imperial
  • Material Flex-Bonded Polyester Cord

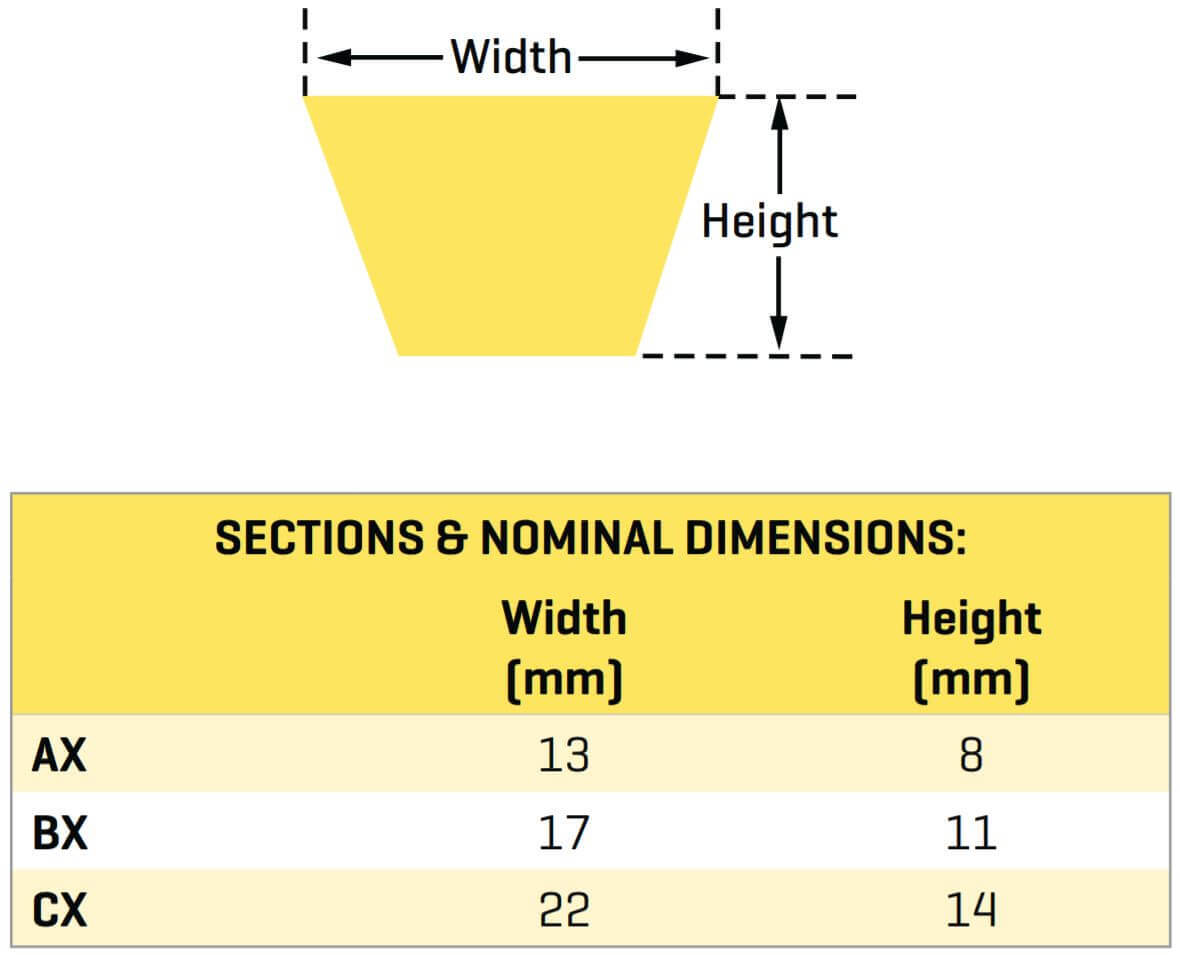

  • Section BX
  • Application Heavy-Duty Belt
  • Series Gates Tri-Power Belt
SKU: A0018236 On Sale

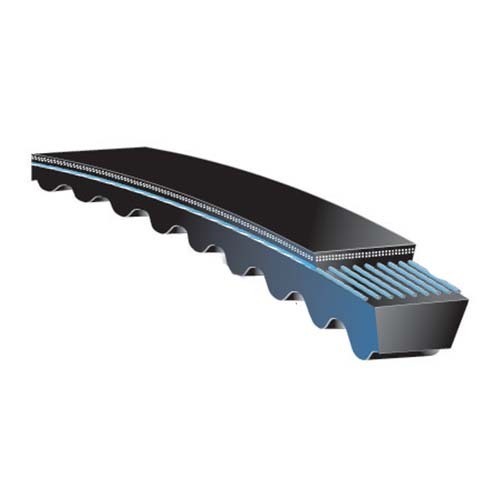

Gates BX25 (9013-2025) Tri-Power Notched (Cogged) Classical Section Belt

Raw Edge, Moulded Notch, Classical Section, High Tempera

$16.26
$21.68
