Description

*** This is old stock but in good condition. There are no returns. You are welcome to inspect at our office if required..***

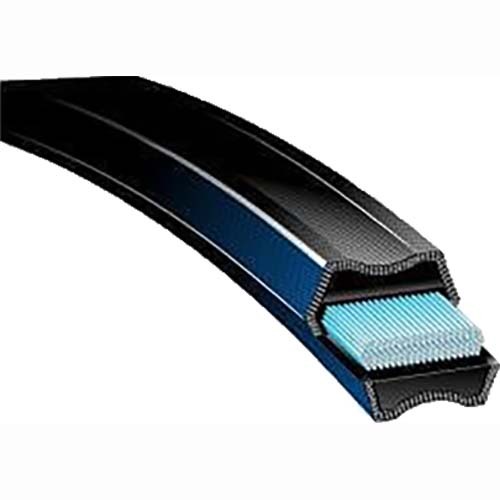

Gates Hi-Power II Dubl-V Belt, BB Section

  • Gates Hi-Power® II Dubl-V belt is characterized by a double-V profile. It uses flex-bonded tensile cords, which are highly resistant to flexing forces, and FlexWeave® Cover for extended protection.
  • It is the ideal solution for “serpentine” drives (drives with counter rotating shafts) where power is transmitted from both the top and bottom of the belt.

Construction

  • Classical cross-section
  • Unique recessed top and bottom
  • Fibre-loaded compound for improved belt stability
  • Gates Curves provide full contact with pulley grooves for uniform loading of cords, uniform wear and increased belt life
  • Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
  • Flex-Weave® cover is a patented fabric construction for longer life, providing extended protection to the belt core from oil, dirt and heat
  • Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
  • Static conductive - ISO 1813 and RMA IP3-3

Advantages

  • Premium performance
  • Power transmission from both sides of the belt
  • Premium performance
  • Excellent performance/cost ratio
  • Suitable for dirty/dusty environments
  • Match free system: meets Gates V80® tolerances, can be installed without matching
  • Tolerates mild clutching or drive slip

Temperature Range

  • -35°C to +60°C

Dimensions

  • Section: BB
  • Width (mm): 17
  • Height (mm): 13
  • Effective Length (inch): 60
  • Belt Code: BB60

Specifications

  • AIMS SKU CA0017929
  • Brand Gates
  • Model Number 9053-0060
SKU: CA0017929

Gates BB60 Hi-Power II Dubl-V Belt, BB Section (9053-0060)

Gates Double Sided V-Belt - Classical Section
