Description

Gates Tri-Power® V Belt is built for superior performance on heavy duty drives of classical cross-section.

The raw edge construction and special notch design makes the Tri-Power® belt especially suited for drives requiring small diameter pulleys and back idlers.

The ethylene EPDM compound allows the belt to handle extreme temperatures up to +121°C.

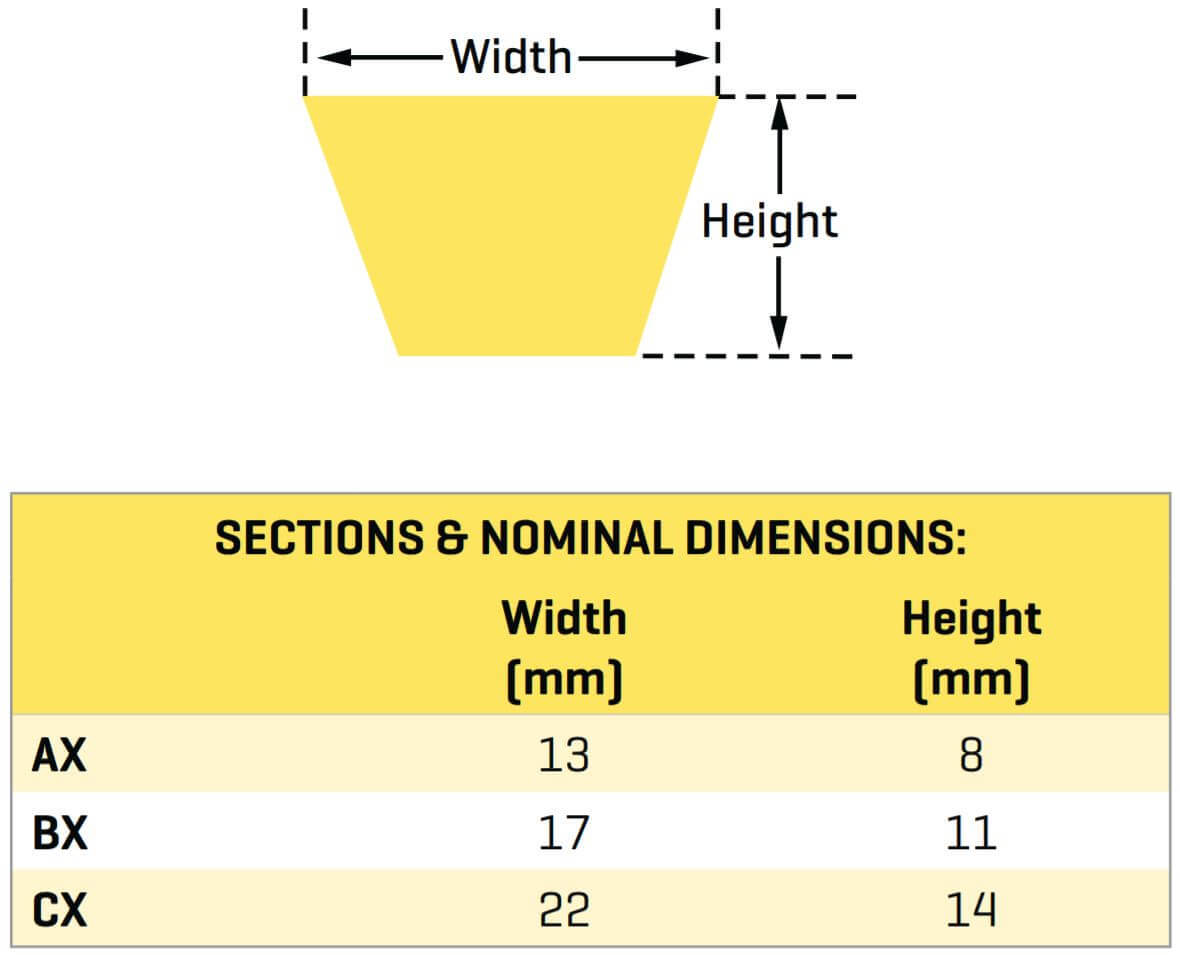

Dimensions

Top Width: 1/2" (13mm)

Depth: 5/16” (8mm)

Length: Measured in Inches According to the Internal Length (Circumference) as designated by the Product name – eg. a AX21 has an Internal Circumference of 21” (533mm)

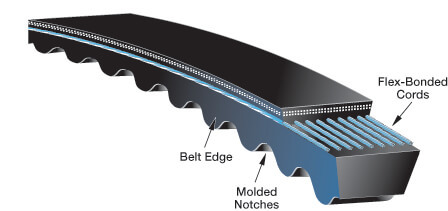

Construction

  • Classical cross-section.
  • Exclusive ethylene EPDM rubber compound for increased temperature range to resist cracking.
  • Fibre-loaded compound for improved belt stability.
  • Raw edge construction.
  • The moulded notch pattern also reduces noise.
  • Precision-ground sidewalls give a uniform wedging action.
  • Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing.
  • Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage.
  • Static conductive - ISO 1813 and RMA IP3-3.



Advantages

  • 15% capacity increase over wrapped belts.
  • Increase efficiency up to 3% over wrapped belts.
  • Use smaller diameter pulleys than wrapped belts.
  • Moulded notches reduce and evenly distribute thermal and bending stresses.
  • Match free system: all sizes meet Gates V80® tolerances, can be installed without matching.
  • Back idlers can be used.

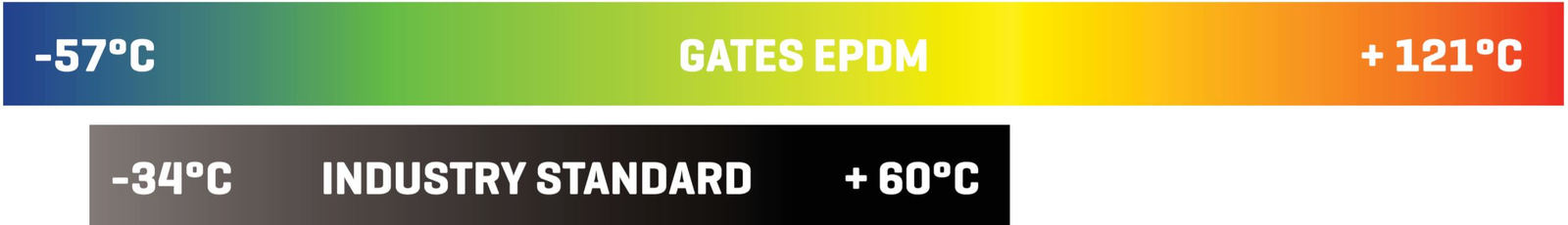

Temperature Range

-57°C to +121°C



AIMS Industrial Supplies Is an Authrorised Gates V Belt Distributor

SKU: A0018213

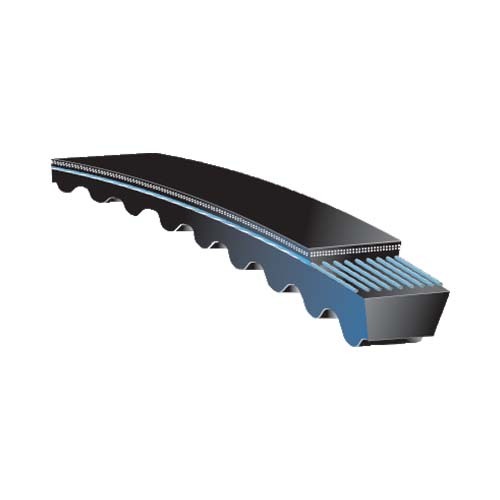

Gates AX80 (9012-6080) Tri-Power Notched (Cogged) Classical Section Belt

Raw Edge, Moulded Notch, Classical Section, High Tempera

$30.14
RRP $68.16
SAVE $38.02 (56%)

How it works.

Make 4 payments of $7.54 over 8 weeks and get it now!


Buy now, pay later.

Specifications

  • AIMS SKU A0018213
  • Brand Gates
  • Model Number 9012-6080
  • Barcode Number 072053014693
