Description

Descriptions

  • Poly Chain® GT® Carbon™, Gates most powerful synchronous belt, has been designed for optimum performance on high torque, low speed drives in any industrial application.
  • Poly Chain® GT® Carbon™ belts operate on Poly Chain® GT® sprockets and do not require any adaptation of existing GT2 applications.
  • Poly Chain® GT® Carbon™ belt construction is based on innovative state-of-the-art design. The body and teeth of the belt are made of a unique polyurethane compound, making the belt tough and virtually immune to abrasion and chemical attack.
  • Ideal for washdown environments when used with Gates nickel plated or stainless steel hardware.

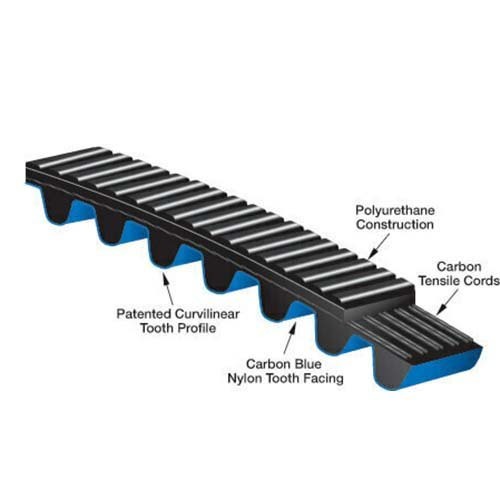

Construction

  • Teeth and body are made of a lightweight polyurethane compound, specially blended for adhesion to the cords and fabric
  • The carbon fibre tensile cords provide extraordinary power carrying capacity
  • Flex fatigue life of carbon is exceptional, and its high impact strength withstands shocks and surge loading

Advantages

  • Maintenance free
  • 400% greater capacity than HTD belts
  • 5% energy savings over V-belts
  • 99% efficiency for life of the drive
  • Cut maintenance and downtime
  • Carbon cords easily handle shock loads
  • Reduce weight and overhung loads
  • Over 120,000 possible drive combinations
  • Inert to most acids, chemicals and water
  • No need for constant re-tensioning
  • Excellent profile solver
  • Back idlers can be used

Temperature Range

  • Range: -54°C to + 85°C

Specifications

  • AIMS SKU A0028175
  • Brand Gates
  • Model Number 9274-3153
  • Barcode Number 072053496291

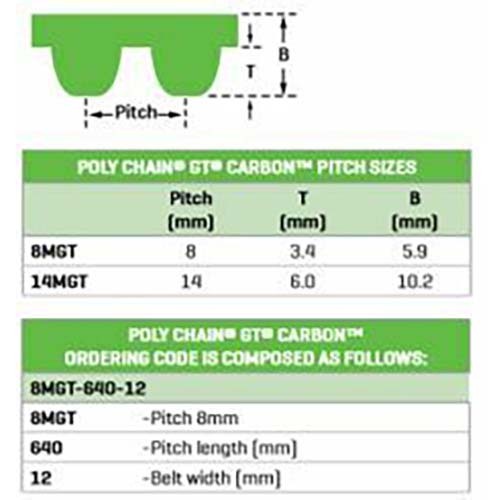

  • Belt Code 8MGT-1224-62
  • Length (mm) 1224
  • Belt Width (mm) 62
  • Number of Teeth 153
  • Teeth Depth (mm) 3.4

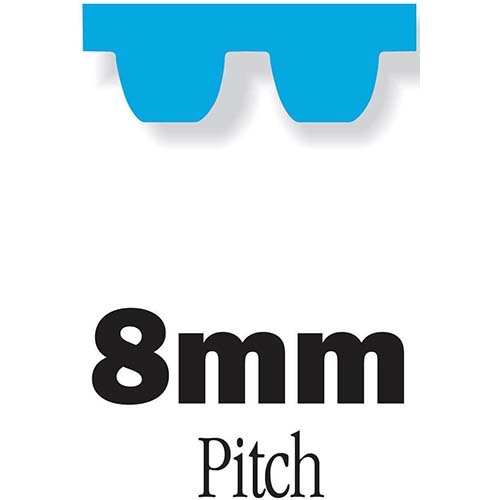

  • Pitch (mm) 8
  • Depth (mm) 5.9
  • Type Poly Chain GT Carbon Synchronous Belt
  • System of Measurement Metric
  • Material Carbon Fibre Cord
  • Section 8MGT
  • Series Gates Poly Chain GT Carbon Belt
SKU: A0028175

Gates 8MGT-1224-62 PolyChain GT Carbon Belt, 8MGT Section 9274-3153

Gates Poly Chain GT Carbon Synchronous Belt

$323.21
RRP $591.25
SAVE $268.04 (45%)
