Description

Descriptions

  • Gates Multi-Speed belt provides top performance on variable speed drives
  • It adjusts itself to the pulley groove without difficulty, providing a wide range of speeds and speed ratios
  • In addition to the standard Multi-Speed belt line, special sizes (top width, thickness and angle) are available on request

Dimensions

  • Standardized Section (ISO R 1604): W16
  • Top Width (mm): 17 mm
  • Pitch Length: 630 mm
  • Angle: 24°

Construction

  • Narrow cross-section
  • Engineered notch contour increases flexibility. The notches ensure maximum heat dispersion, considerably decreasing running temperatures.
  • Flex-Bonded tensile cords
  • Strong transverse rigidity offers high resistance to distortion of the belt in the pulley. This results in even load distribution and wear reduction.
  • Uniform composition and thickness of the undercord ensure smooth and silent running
  • Combination of these construction features gives maximum speed adjustment

Advantages

  • Maximum range of speed changes
  • High load-carrying capacity
  • Smooth machine operation
  • Exceptionally long belt life
SKU: A0019413

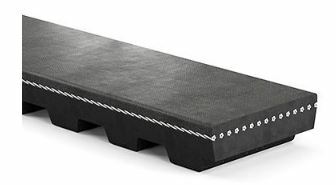

Gates 630W16 (9802-10015) Multi-Speed (Variable Speed) Belt

Multispeed Belt - Industrial - Heavy Duty Belt

$44.53
RRP $97.94
SAVE $53.41 (55%)

How it works.

Make 4 payments of $11.13 over 8 weeks and get it now!


Buy now, pay later.

Specifications

  • AIMS SKU A0019413
  • Brand Gates
  • Model Number 9802-10015
  • Barcode Number 5412571181586
  • Type Multispeed Belt - Industrial
  • System of Measurement Metric
  • Material Flex-Bonded Polyester Cord
  • Belt Code 630W16
  • Length (mm) 630
  • Section W16
  • Belt Width (mm) 17
  • Depth (mm) 6
  • Application Heavy-Duty Belt
  • Series Gates Multi-Speed Belt
