Description

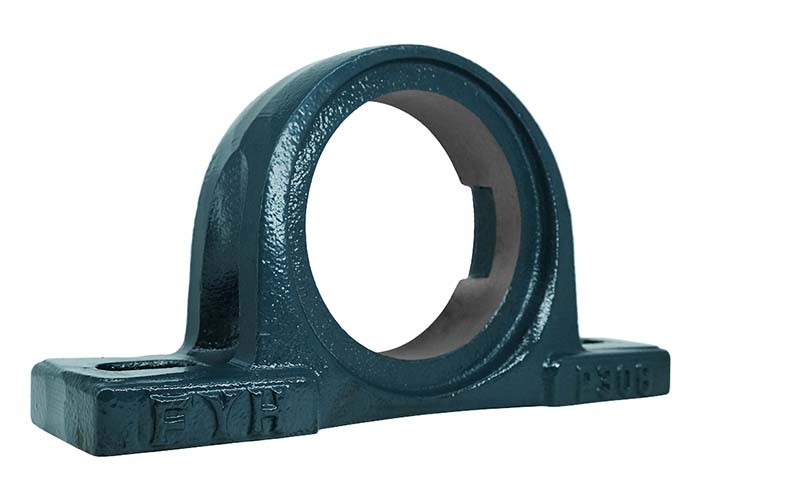

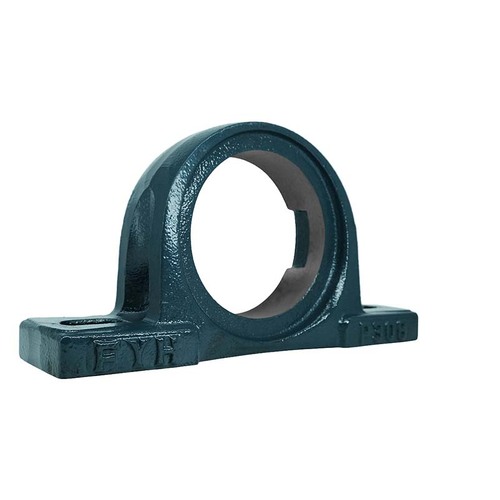

FYH Pillow Block Bearing Housing - P300 Series

Pillow type.
P300 series.

About FYH Strength Housing

FYH bearings can withstand very high loads due to the use of only high quality material and excellent design.
However, when high static or impact loads are encountered, the load capacity of the bearing must be determined.
The housing design is such that it can withstand loads from any angle; however the bearing is strongest with a direct downward load through the base of the unit.
For loads in other directions, the allowable load must be determined specifically for the direction in question.
Rigidity of the base and flatness of the mounting surface also influence the housing strength.
The equipment designer or installer must examine and perform calculations for the complete supporting structure of the bearing.

Specifications

AIMS SKU A0202721

Brand FYH

Model Number P310/FYH

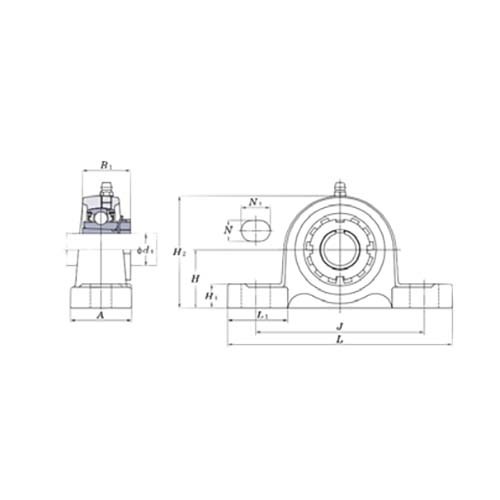

Dimension N (mm) 20

Dimension L1 (in) 3 15/32

Dimension L1 (mm) 88

Dimension H2 (in) 5 13/16

Dimension H2 (mm) 148

Dimension H1 (in) 15/16

Dimension H1 (mm) 24

Dimension N1 (in) 1 3/8

Dimension N1 (mm) 35

Dimension H (in) 2 61/64

Dimension S (in) 0.866

Dimension B (in) 2.402

Dimension N (in) 25/32

Dimension A (mm) 75

Dimension J (in) 8 11/32

Dimension J (mm) 212

Dimension A (in) 2 15/16

Dimension L (in) 10 13/16

Shaft Diameter (d) 61mm (2.402")

Dimension L (mm) 275

Dimension S (mm) 22

Dimension H (mm) 75

Bolt Size (inch) 5/8

Bolt Size (mm) M16

Dimension B (mm) 61

Type Bearing Housing
