Description

Wide Inner Ring Housings (Extra Light Pillow Block Bearing Housing)

  • Commonly used bearing housings designed for the corresponding wide inner bearing to be installed.
  • This range is well known for its versatility between the bearing and housing options as well as ease of installation.

Specifications

  • AIMS SKU A0147772
  • Brand FYH
  • Model Number P003/FYH

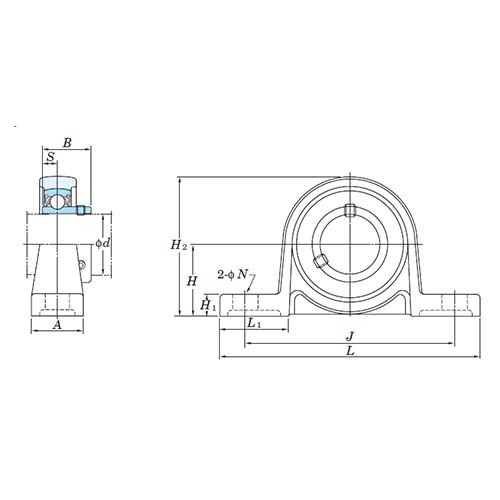

  • L1 (mm) 21
  • S (mm) 6
  • A (mm) 18
  • b (mm) 17.5
  • H (mm) 24
  • h2 (mm) 47
  • L (mm) 85
  • Factor Fo 14.4
  • Bolt Size (mm) M6
  • H1 (mm) 7
  • J (mm) 67
  • N (mm) 7
  • Dynamic Load (cr) kN 6
  • Static Load (c0r) kN 3.25
  • Shaft Diameter d (mm) 17
  • Type Bearing Housing
  • System of Measurement Metric
  • Material Zinc Alloy
  • Item Type Extra Light Two Bolt Flange
SKU: A0147772

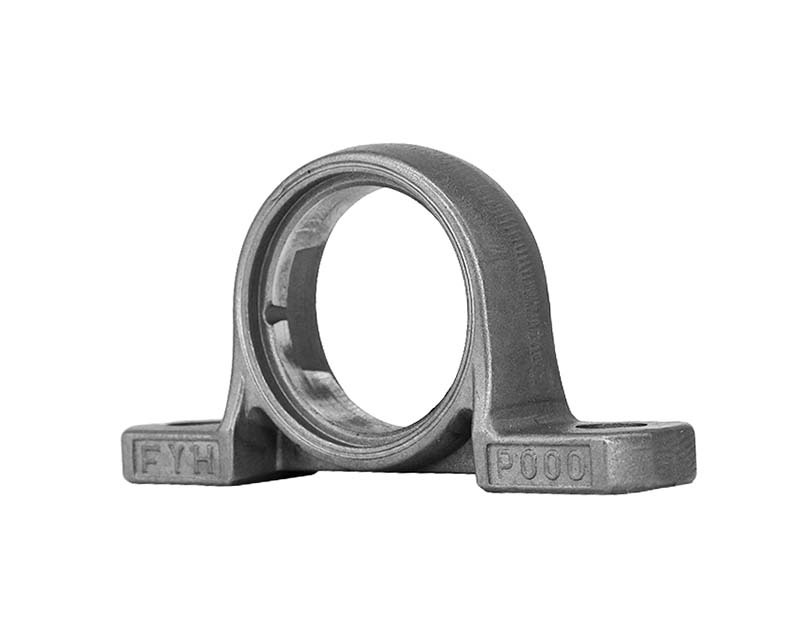

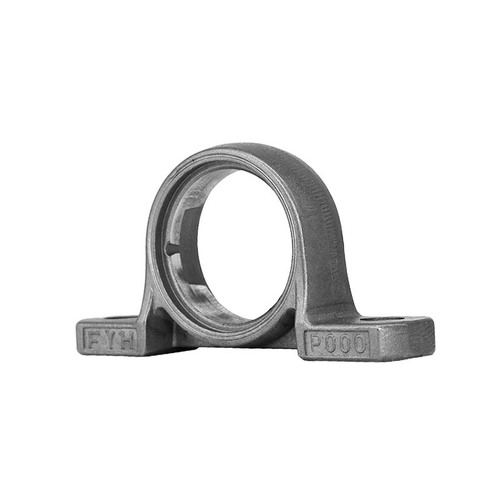

FYH P003 Extra Light Pillow Block Bearing Housing Suits 17mm Shaft

Extra Light Pillow Block Zinc Alloy Bearing Housing

$17.90
