Specifications

AIMS SKU A0147607
Brand FYH
Model Number LF205/FYH

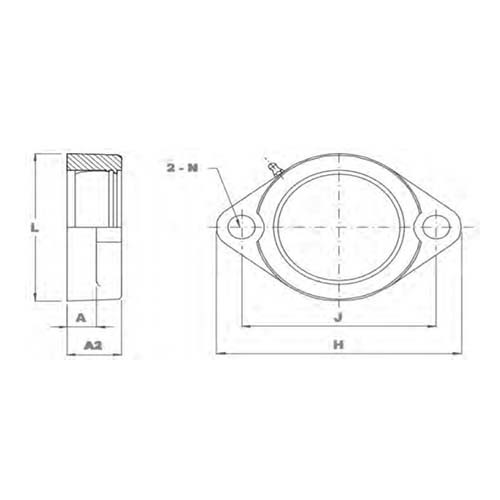

A2 (mm) 11
A01 (mm) 34
Shaft Diameter (d) 25mm (7/8 - 1")
B1 (mm) 30.5
Shaft Diameter d (mm) 25
Static Load (c0r) kN 7.85
Dynamic Load (cr) kN 14
N (mm) 10
J (mm) 76
A1 (mm) 11
A0 (mm) 30.5
Bolt Size (mm) M8
Factor Fo 13.9
L (mm) 64
H (mm) 95
b (mm) 27
A (mm) 20
S (mm) 7.5
• Type Bearing Housing
• System of Measurement Metric/Imperial
• Material Cast Iron
• Item Type Extra Light Two Bolt Flange
