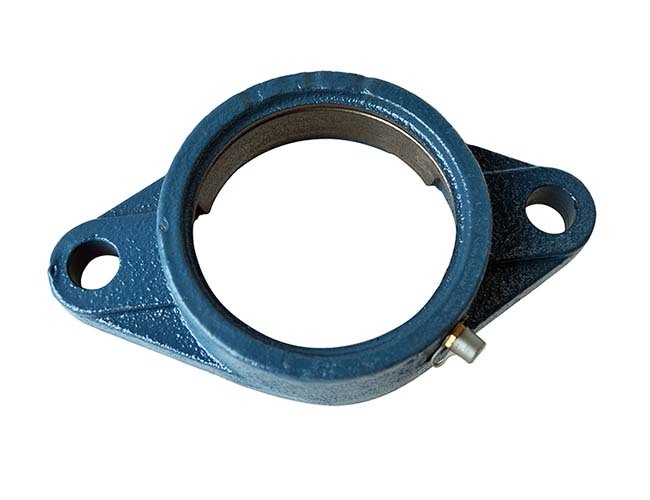

FYH 2-Bolt Flange Bearing Housing - FL300 Series

  • 2-bolt Oval flange type.
  • FL300 series.

About FYH Strength Housing

  • FYH bearings can withstand very high loads due to the use of only high quality material and excellent design.
  • However, when high static or impact loads are encountered, the load capacity of the bearing must be determined.
  • The housing design is such that it can withstand loads from any angle; however the bearing is strongest with a direct downward load through the base of the unit.
  • For loads in other directions, the allowable load must be determined specifically for the direction in question.
  • Rigidity of the base and flatness of the mounting surface also influence the housing strength.
  • The equipment designer or installer must examine and perform calculations for the complete supporting structure of the bearing.

Specifications

  • AIMS SKU A0202699
  • Brand FYH
  • Model Number FL305/FYH

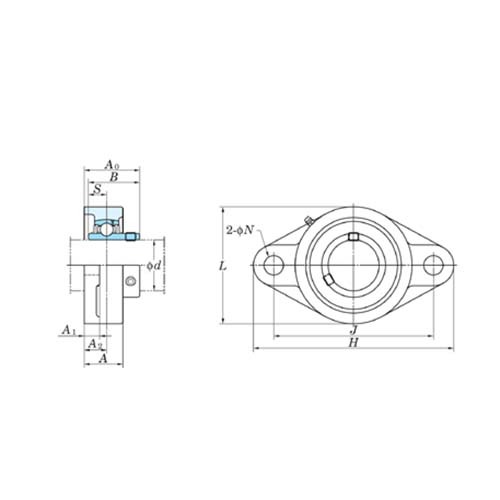

  • Dimension J (in) 4 29/64
  • Dimension H (in) 5 29/32
  • Dimension S (in) 0.591
  • Dimension B (in) 1.496
  • Dimension A0 (in) 1 17/32
  • Dimension A0 (mm) 39
  • Dimension A2 (in) 5/8
  • Dimension A2 (mm) 16
  • Dimension A1 (in) 1/2
  • Dimension A1 (mm) 13
  • Dimension N (in) 3/4
  • Dimension N (mm) 19
  • Dimension A (mm) 29
  • Dimension J (mm) 113
  • Dimension A (in) 1 5/32
  • Dimension L (in) 3. 5/32
  • Shaft Diameter (d) 38mm (1.496")
  • Dimension L (mm) 80
  • Dimension S (mm) 15
  • Dimension H (mm) 150
  • Bolt Size (inch) 5/8
  • Bolt Size (mm) M16
  • Dimension B (mm) 38
  • Type Bearing Housing
SKU: A0202699

FYH FL305 Heavy 2-Bolt Flange Bearing Housing Suits 38mm (1.496") Shaft

FYH 2-Bolt Flange Bearing Housing - FL300 Series
