Description

***Product is one hub only.***

To buy the complete unit of Flexible Jaw Coupling (2 hubs and 1 element), refer to the table below:

Size Flexible Jaw Coupling Hubs Flexible Jaw Coupling Nitrile Element
NM-97 A0112364 - Flexible Jaw Coupling NM97 Pilot Bore Hub A0112358 - Flexible Jaw Coupling NM97 Nitrile Element
NM-82 A0112363 - Flexible Jaw Coupling NM82 Pilot Bore Hub A0112357 - Flexible Jaw Coupling NM82 Nitrile Element
NM-67 A0112362 - Flexible Jaw Coupling NM67 Pilot Bore Hub A0112356 - Flexible Jaw Coupling NM67 Nitrile Element
NM-50 A0112361 - Flexible Jaw Coupling NM50 Pilot Bore Hub A0112355 - Flexible Jaw Coupling NM50 Nitrile Element
NM-128 A0112360 - Flexible Jaw Coupling NM128 Pilot Bore Hub A0112354 - Flexible Jaw Coupling NM128 Nitrile Element
NM-112 A0112359 - Flexible Jaw Coupling NM112 Pilot Bore Hub A0112353 - Flexible Jaw Coupling NM112 Nitrile Element



About the NM Series Jaw Couplings:

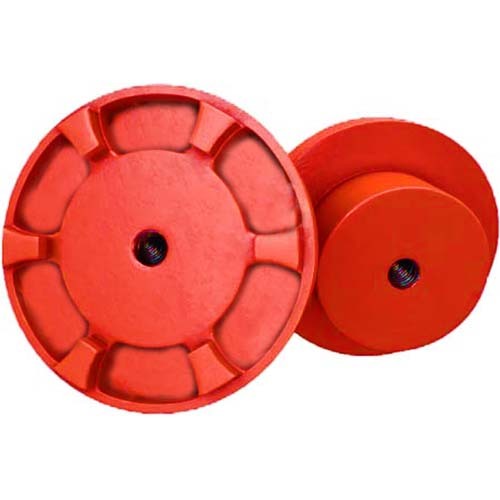

The "NM" series Jaw Coupling Full Unit consists of two hubs and a unique ring type element which dampens torsonal vibrations and operates smooth and steady with high wear resistance.

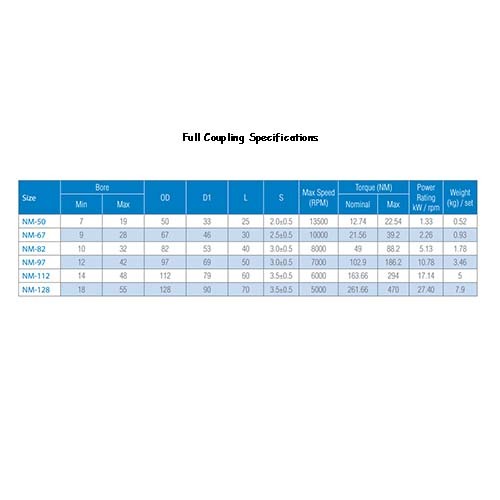

Specifications

  • AIMS SKU A0112362
  • Size NM67
  • Weight (kg) / Set 0.93

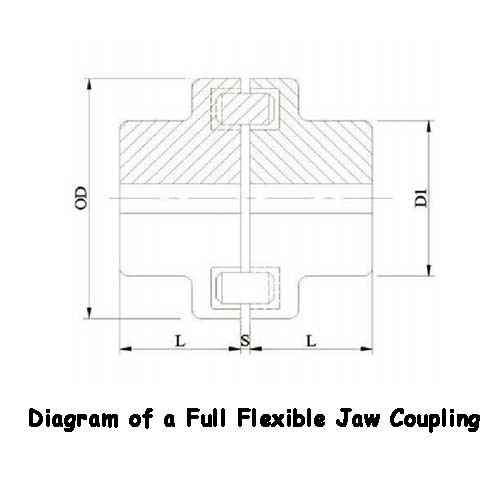

  • Outer Diameter, mm (complete set) 67
  • S 2.5±0.5
  • D1 46
  • Power Rating Kw / rpm 2.26
  • Max Bore, mm (complete set) 28
  • L 30
  • Nominal Torque (nm) 21.56
  • Coupling Type Flexible Jaw Coupling
  • Max Speed (RPM) 10000
  • Min Bore, mm (complete set) 9
  • Max. Torque (nm) 39.2
  • Type Jaw-Type Coupling
SKU: A0112362

Flexible Jaw Coupling NM67 Pilot Bore Hub

Flexible Jaw Coupling, Pilot Bore Hub

$27.43
