Description

Flat Flanged Idler Pulley - Double Row Bearing

  • Double row ball bearing flat, flanged, and V groove idlers was developed to handle heavier loads that exceed the capacity of single row ball bearing idlers.
  • The double row idlers are more stable when side loads or off center loads occur. They are available with 3/8", 1/2", 5/8" and 3/4" bolt mounting.
  • These riveted idlers are constructed from 13 gauge material.
  • The high quality precision bearings made of 52100 bearing steel are pre-lubricated, have contact type seals for retention of high temperature lubricant to ensure protection against dust, dirt or other foreign matter.
  • No re-lubrication is required.
  • A compression ring is compressed between center of O.D. of bearing and center I.D. of pulley bearing pocket to assure a firm reliable fit of pulley more evenly to the outer bearing race resulting in minimum distortion of bearing O.D, (USA patent 4518372 foreign patents pending).
  • Tests have proven this method of bearing installation to give longer and more reliable bearing life.

About Application for Idler Pulley

  • Accurately bore sized for easy, quick mounting on standard 1/2" or 5/8" bolts (1/2" bore removable sleeve in all pulleys) 3/8" sleeve is available if requested.
  • Pulleys are riveted for strength and durability- No spot welding is used.
  • Feature smoothly rolled out edges which eliminate belt chafing and scuffing.
  • "Weep Holes" on the rivet circle allow water drainage when the pulley is mounted in a horizontal position.
  • Zinc Plated.

Specifications

  • AIMS SKU A0149929
  • Brand Don Dye
  • Model Number 208032092
  • Pulley Width (W) (mm) 63.1
  • Ga. Mat. (G) 13
  • Face Diameter (F) (inch) 5
  • Outside Diameter (D) (inch) 5.75
  • Weight (lbs) 2.62
  • Outside Diameter (D) (mm) 146.05
  • No. Of Rivets 18
  • ID (mm) 30
  • Bore (b) To Suit Reduction Bush - 3/8", 1/2", 5/8", 3/4"
  • Face Diameter (F) (mm) 127
  • Face Width (A) (mm) 50.8
  • Rows Of Rivets 2
  • Pulley Width (W) (inch) 2.48
  • Face Width (A) (inch) 2
  • Type Idler Pulley
SKU: A0149929

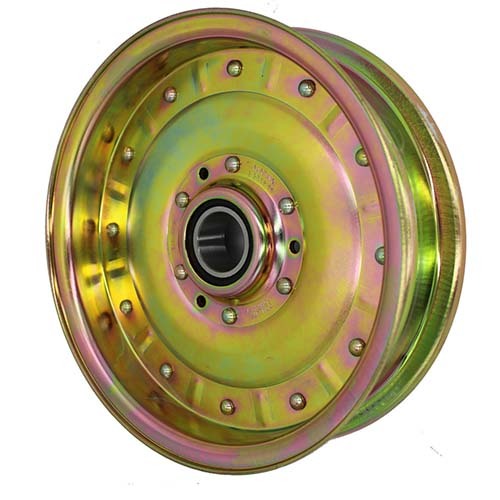

Don Dye Flat Flanged Idler Pulley 5.75" OD x 30mm ID x 2.48" Wide Double Row

Flat Flanged Idler Pulley - Double Row Bearing

$118.77
