Description

**Price is per METRE – Please order in multiples of 1 metre.  If you order a quantity of 1, we will supply 1m of belting.**

Profile shape: Vee

Colour: Orange

Compliance: RoHS

Material: Composite Polyester/Polyurethane

Minimum Pulley Diameter: 45mm

Maximum Ride Height Above Rim: 0.18" (4.6mm)

Minimum Ride Height Above Rim: 0.06" (1.6mm)Best Suited For: Heavier, shock loaded applications and reciprocating engine powered drives that use classical A/13/4L Section industrial rubber V-belt.

A Longer Lasting Belt NuTLink Detachable V-Belts are made from a polyester/polyurethane composite. This combination ensures a longer belt life even in the harshest conditions — up to 20 times longer in some applications.

  • High resistance to extreme temperatures (-40° to +116°C)
  • High resistance to abrasive materials
  • High resistance to water, steam, oil and most chemicals

Fit in Minutes, Not Hours The link construction means that belts can be fitted easily and quickly even on inaccessible drives. Belts can be joined around the shafts without dismantling the drive.

  • Links connected with metal T-studs
  • Install without dismantling drive

Make to Any Length - Reduce Your Belt Stocks with NuTLink Detachable V-Belts, there is no need to hold stocks of every belt length. Make to length on site simply by adding or removing links.

  • Reduced V-belt inventory . . . any belt: any time

Minimal Maintenance - Fit & Forget! High quality materials ensure that the belt displays minimal stretch even over long periods. Hence, minimal re-tensioning is required.

  • Permanent drop-in replacements
  • High horsepower; low stretch

Reduced Vibration/Noise The link design means that NuTLink V-Belts can reduce transmitted vibration and belt noise by up to 50%.

  • RoHS 2002/95/EC Directive compliant
  • NuTLink is available in all the main industry belt profiles: Z/10, A/13, B/17, C/22
SKU: A0066769

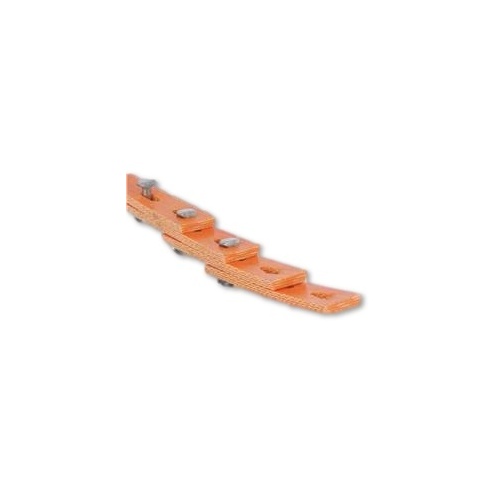

Fenner NuTLink "A" Section V Belt

Detachable Link V Belt

$80.05

How it works.

Make 4 payments of $20.01 over 8 weeks and get it now!


Buy now, pay later.

Choose a different size/variant

Specifications

  • AIMS SKU A0066769
  • Brand Fenner Drives
  • Model Number NUTLINK-A
  • Color Orange
  • Top Width (in mm) 13
  • Temperature Range °F -40 to +240
  • Weight kg/m 0.15
  • Section V Belt A
  • Profile Size A/13
  • Temperature Range °C -40 to +116
  • Type Link V Belt
  • Material Composite Polyester/ Polyurethane Steel Rivets
  • Compliancy ROHS
