Description

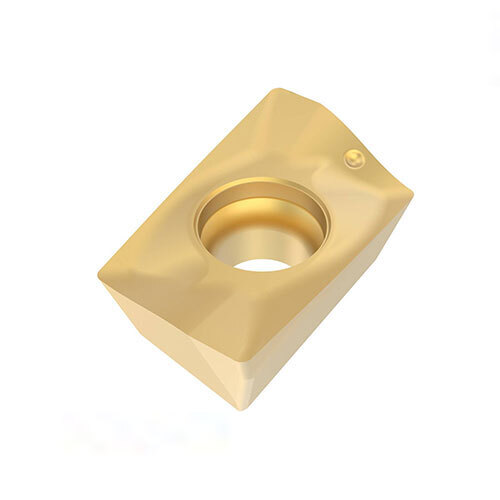

F40M (M07) Turbo 12 Square Shoulder Milling Insert

  • F40M grade, carbide PVD.
  • PVD (Physical Vapour Deposition).
  • PVD coated grades are recommended for applications with low feed rates where high edge toughness is required.
  • PVD-coated grades are suitable for applications with low to intermediate cutting speed.

F40M Grade

  • PVD-coated grade for fine to medium rough milling. First choice for milling with small feeds and/or low cutting speeds.
  • Excellent for milling when there is a risk of vibrations and when coolant is used. Recommended for machining superalloys.
  • (Ti, Al) N – TiN.

About Turbo Square Shoulder Milling

  • Aggressively optimize your cutting properties with Seco’s Turbo family of cutters that reduce heat generation and cutting forces.
  • These cutters are available in a variety of configurations, all with copy milled pockets for insert stability and two pitch configurations to tackle almost every material.
  • Maximize output in a wide range of applications including; roughing, semi-finishing, finishing.
  • Methods include all facing, slotting, profiling contouring, helical interpolation, ramping, and plunging applications.

Specifications

  • AIMS SKU A0118876
  • Brand Seco
  • Model Number 35445
  • Barcode Number 35445000001002
  • Designation XOEX120408R-M07 F40M
  • Grade F40M
  • Insert Width (w1) Mm 8.2
  • Insert Seat Size Code (SSC) XOEX12..
  • Insert Thickness (S) mm 5.03
  • Cutting Edge Count (CEDC) 2
  • Clearance Angle Major) Deg 15.0 deg
  • Corner Radius (RE) mm 0.8
  • Cutting Edge Effective Length (LE) mm 12
  • Grade Type Carbide PVD
  • Wiper Edge Length (bs) Mm 1.6
  • Cutting Rake Deg 20.3 deg
  • Insert Hand (IH) Right
  • Type Chamfer Turbo 12 Milling Insert
SKU: A0118876

Seco 12 x 5.03mm F40M 20.3° Chamfer Mill Turbo 12 Milling Insert XOEX120408R-M07,F40M Pack of 10

F40M (M07) Chamfer Mill Turbo 12 Milling Insert

$306.98
