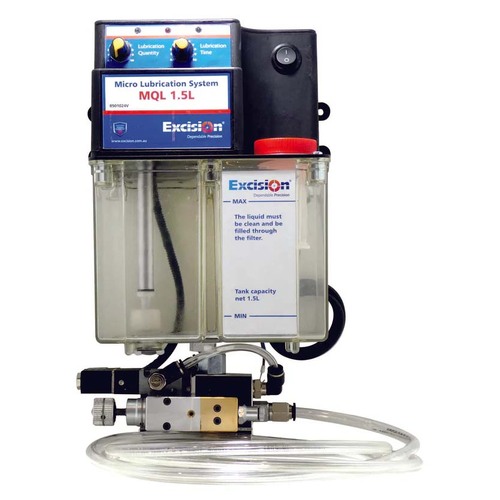

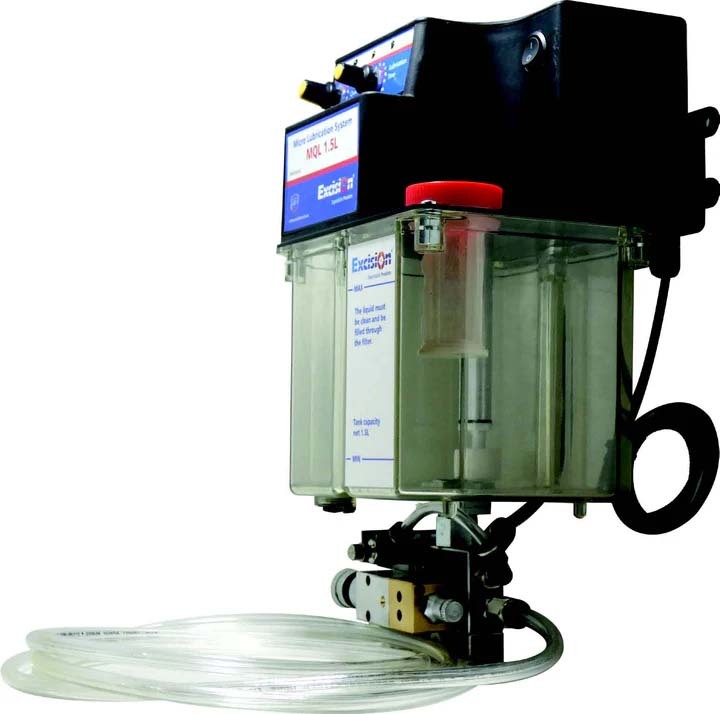

Excision MQL Micro Lubrication System Unit

• Introducing the Excision Micro Quantity Lubrication (MQL) System, a state-of-the-art solution for precise and efficient lubrication consumption.
• This system allows users to apply the exact quantity of lubrication required for the process, with the option to set lubrication times as either interval or constant.

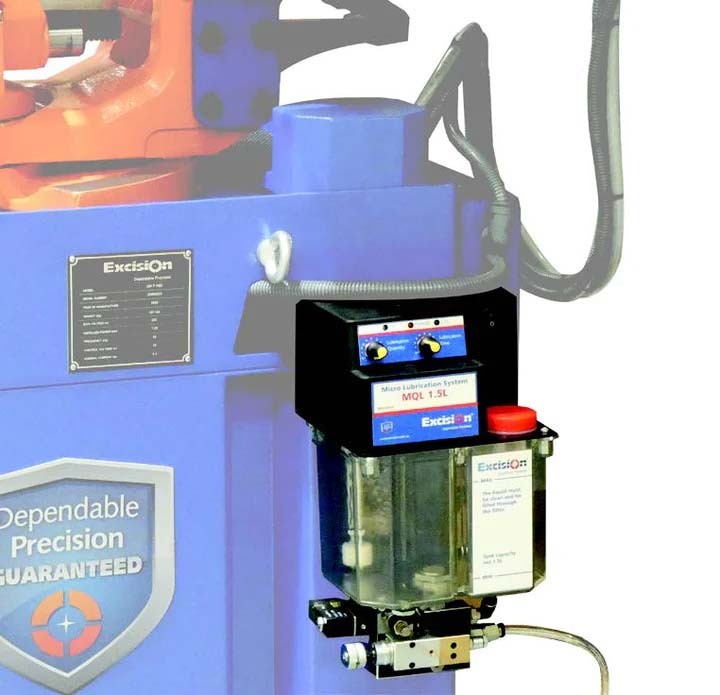

• The system is easy to mount to existing systems and does not produce any leftover mist or smoke, making it a clean and safe option for use in any setting.
• This MQL system is designed for use in areas that require frequent adjustment changes, such as circular saw machines, threading machines, milling machines, routers, band saws, and lathes.
• It features a user-friendly interface with knobs for easy time settings and can also be installed to be compatible with PLC control units upon request. By adding a pump, up to 5 points can be operated simultaneously.
• The system boasts a range of advanced technical specifications such as working voltage of 24V AC/DC, a working pressure of 4-6 Bar, and a viscosity range of 2-30 cst.
• It also includes standard features such as a low-level switch, oil filling filter, and the ability to output to up to 5 pumps (max).
• This system can be used with a variety of liquids such as herbal essential cutting oils, industrial oils, solvent-based essential oils, and chain and gear oils.
• Overall, the Excision Micro Quantity Lubrication System is a highly advanced and efficient solution for precise lubrication consumption, increasing tool life and production time, and reducing the need for filter systems.
• Easy mount to the systems.
• The leftover, mist or smoke does not occur.
• Can be used internally or externally.
• Increases the Tool life.
• Increases the production time.
• Does not need any filter system.
• Different nozzle types can apply.

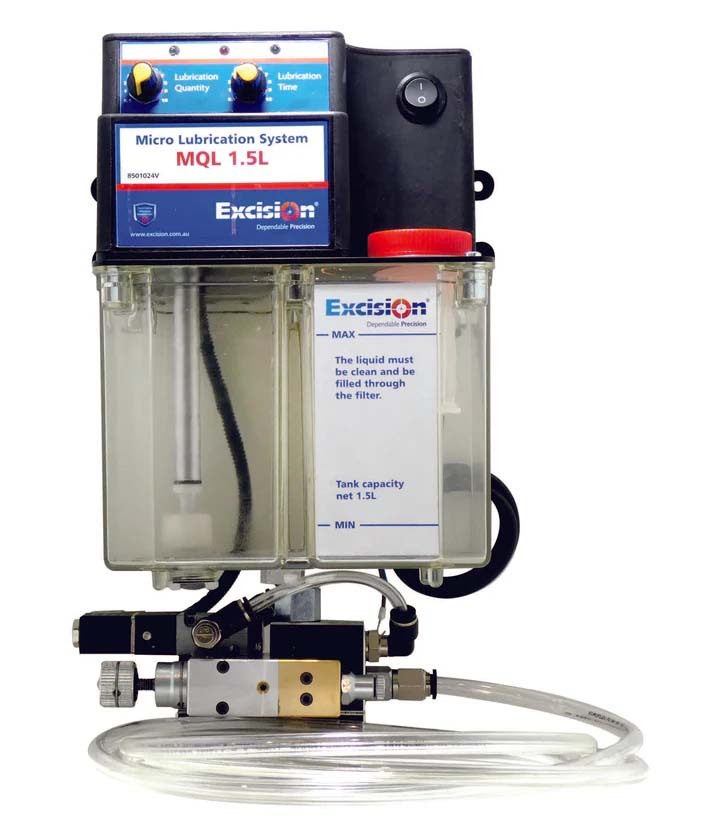

MQL 1.5L

• It is designed for use in areas that require frequent adjustment changes.
• The time setting is made extremely simple thanks to the knobs.
• It can also be installed as compatible with plc control units upon request. By adding a pump, up to 5 points can be operated simultaneously.

TEchnical Specifications

• Working Voltage: 24V AC / DC
• Working Pressure: 4 - 6 Bar
• Oil Amount Min: 0,0012 ml
• Oil Amount Max: 0,028 ml
• Lubrication Interval: 0.1sec – 10 sec
• Lubrication Time: 0.1sec – 10 sec
• Reservoir: 1,5 litre
• Viscosity Range: 2-30 cst

Standard Features

• Low level switch
• With oil filling filter
• Up to 5 pumps output feature (Max.)
• For each output nozzle is required

Scope of Application

• Circular saw machines
• Threading machines
• Milling machines
• Scrubbing benches
• Routers
• Band saws
• Swich drills
• Lathes

Liquids That Can Be Used

• Herbal essential cutting oils
• Industrial oils
• Solvent based essential oils
• Chain and gear oils
