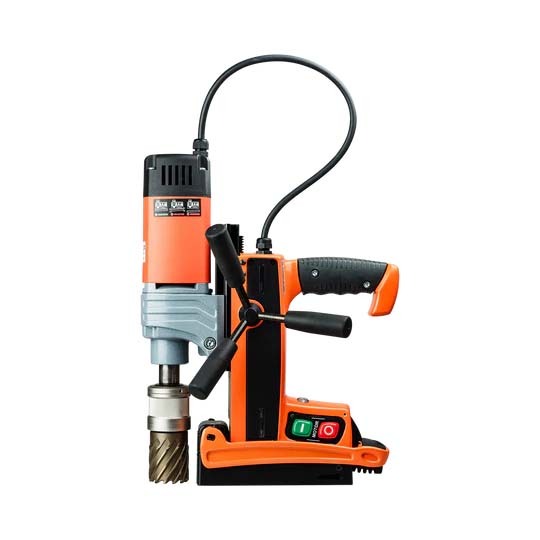

Excision EM40 Magnetic Drill

• Magnex Drill 40 features a powerful permanent magnet, ideal for a wide range of steel with a minimum thickness of 1.6mm, that requires no power supply.
• It's also wonderfully lightweight and compact, fitting 19mm Weldon shanks, and has double dove-tailed height adjustment for drill chucks.
• Powerful permanent magnet - doesn't need a power supply
• Very light and compact at only 9.9kg
• Height adjustable slide enables an increased range of applications including standard twist drills
• Suits 19mm Weldon shanks
• Solid brass guides with spring loading for rigid gliding and no vibration.
• Made in Germany.

Specifications

• Core Drill Dimensions: 12.0-40.0mm
• Cutting Depth: 50.0mm
• Twist Drill: 1.0-13.0mm
• Counter-Boring : 10.0-40.0mm
• Arbors: Quick-Release Chuck
• Stroke:105mm
• Height Adjustment: 80mm
• Gearbox-On-load Speed: 450rpm
• Power Consumption: 1,100W
• Voltage: 230V 50/60Hz
• Tool Force (10mm)/Magnetic Adhesion Strength: 2,800N/17,000N
• Tool Force (6mm S235): 2,300N
• Magnetic Base: 72 x 190mm
• Weight: 9.9Kg
