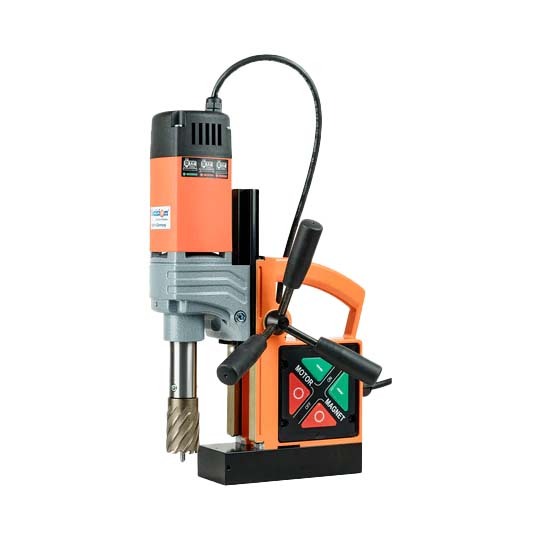

Excision EM40 Magnetic Drill

• The EM40 is compact but loaded with premium features. Its double-dove-tailed design adds height, letting you use a keyless drill chuck on a smaller drill.
• Built-in magnetic adhesion sensor and solid brass guides ensure safe, smooth operation with no vibration.
• With 9,000N magnetic adhesion and an integrated coolant system, it's perfect for industrial use and versatile applications.
• 2 coil 9,000N magnetic adhesion for industrial use.
• Solid brass guides with spring loading for rigid gliding and no vibration.
• Height adjustable slide enables an increased range of applications including standard twist drills.
• Direct Weldon arbor type spindle for use with all 19mm shank core drills.
• Integrated coolant system to increase the life of your core drills.
• Made in Germany.

Specifications

• Core Drill Dimensions: 12.0-40.0mm
• Cutting Depth: 50.0mm
• Twist Drill: 1.0-13.0mm
• Counter-Boring : 10.0-40.0mm
• Arbors: Quick-Release Chuck
• Stroke: 129mm
• Height Adjustment: 86mm
• Gearbox-On-load Speed: 450rpm
• Power Consumption: 1,100W
• Voltage: 230V 50/60Hz
• Tool Force (10mm)/Magnetic Adhesion Strength: 2,100N/9,000N
• Magnetic Base: 70 x 185mm
• Weight: 11.5Kg
