Specifications

AIMS SKU A0170966
Brand ECO
Model Number SQY5/8-RS/ECO

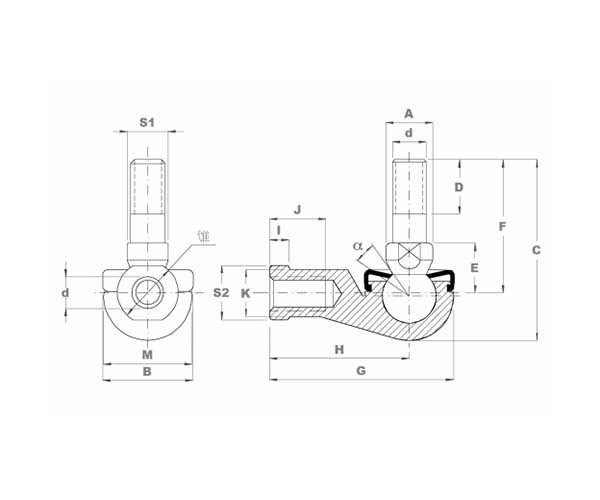

J (mm) 32
H (mm) 64
b (mm) 44
A (mm) 22
C (mm) 79.5
Load Stat (kN) 26
G - UNF 5/8-18
L (mm) 27
g (mm) 84
E (mm) 23.5
S2 (mm) 22
α Degree 20
M (mm) 39
k (mm) 22
D (mm) 23
F (mm) 60
S1 (mm) 19
I (mm) 8

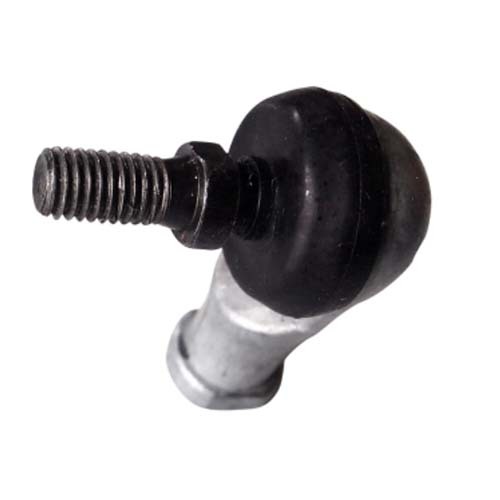

• Type Studded Rod End
