Specifications

AIMS SKU A0170965
Brand ECO
Model Number SQY5/16-RS/ECO

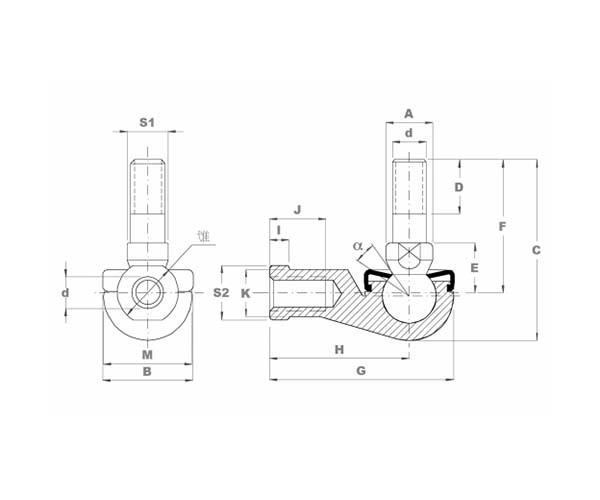

J (mm) 17
H (mm) 36
b (mm) 24
A (mm) 12
C (mm) 42.5
Load Stat (kN) 7
G - UNF 5/16-24
L (mm) 16
g (mm) 48
E (mm) 14
S2 (mm) 14
α Degree 25
M (mm) 23
k (mm) 12.5
D (mm) 12
F (mm) 31
S1 (mm) 10
I (mm) 5

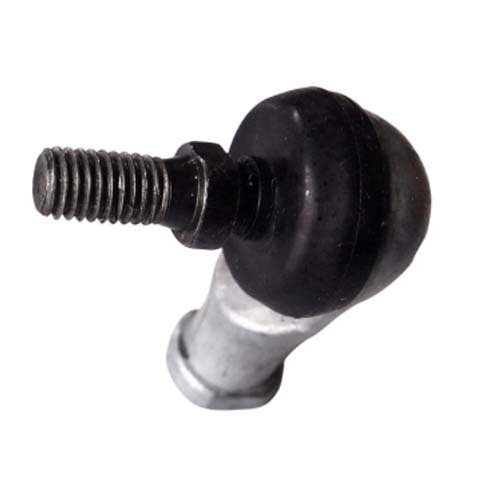

• Type Studded Rod End
