Specifications

AIMS SKU A0170964
Brand ECO
Model Number SQY3/8-RS/ECO

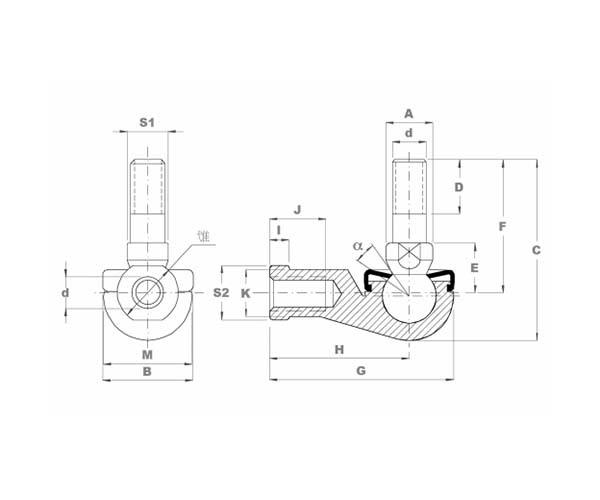

J (mm) 21
H (mm) 43
b (mm) 30
A (mm) 14
C (mm) 50.5
Load Stat (kN) 10
G - UNF 3/8-24
L (mm) 19
g (mm) 57
E (mm) 17
S2 (mm) 17
α Degree 25
M (mm) 27
k (mm) 15
D (mm) 15
F (mm) 37
S1 (mm) 11
I (mm) 7

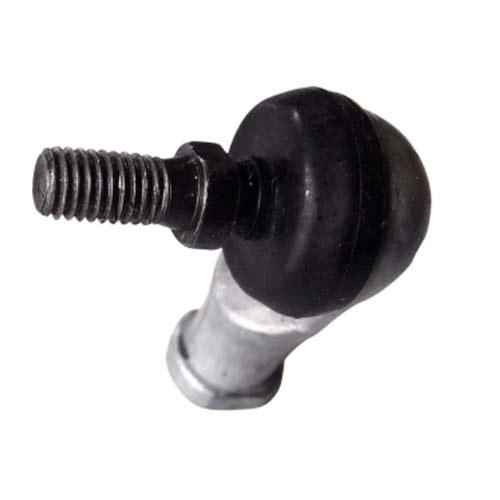

• Type Studded Rod End
