Specifications

AIMS SKU A0170963
Brand ECO
Model Number SQY3/4-RS/ECO

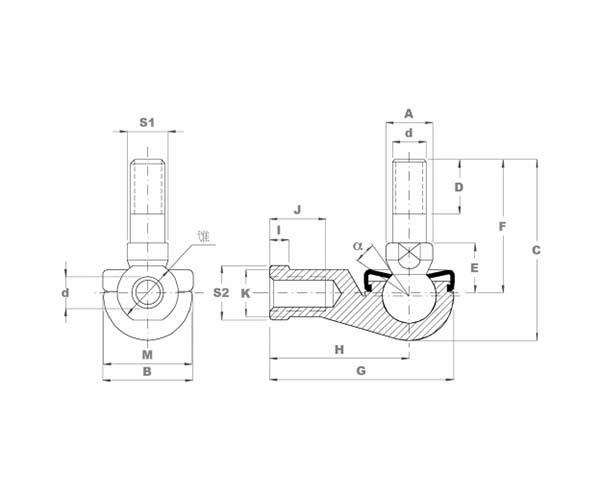

J (mm) 34
H (mm) 71
b (mm) 45
A (mm) 23
C (mm) 90
Load Stat (kN) 33
G - UNF 3/4-12
L (mm) 31
g (mm) 93
E (mm) 26.5
S2 (mm) 27
α Degree 20
M (mm) 44
k (mm) 25
D (mm) 25
F (mm) 68
S1 (mm) 20
I (mm) 10

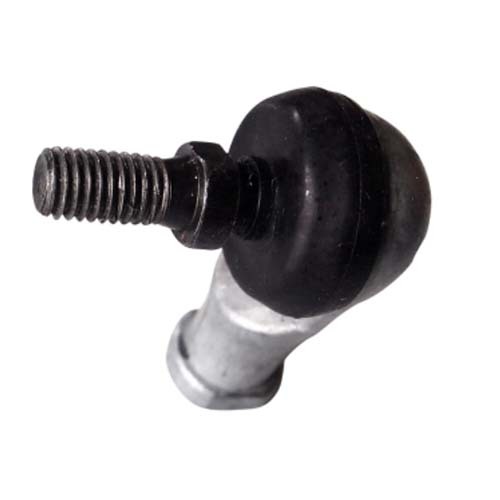

• Type Studded Rod End
