Specifications

AIMS SKU A0170962
Brand ECO
Model Number SQY3/16-RS/ECO
J (mm) 14
H (mm) 27
b (mm) 19
A (mm) 9
C (mm) 29
Load Stat (kN) 2
G - UNF 10-32
L (mm) 11
g (mm) 35
E (mm) 10
S2 (mm) 9
α Degree 25
M (mm) 16
k (mm) 9
D (mm) 8
F (mm) 21
S1 (mm) 7
I (mm) 4

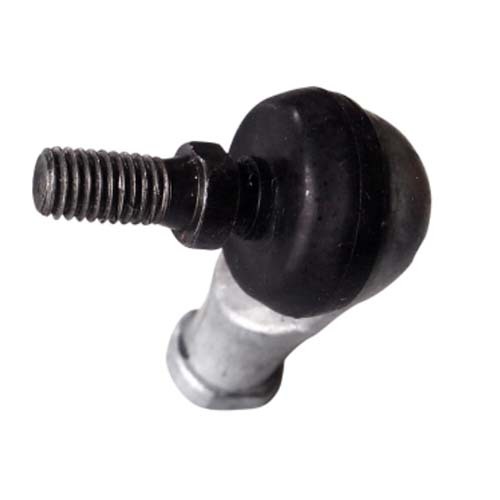

• Type Studded Rod End
