Specifications

AIMS SKU A0170961
Brand ECO
Model Number SQY1/4-RS/ECO

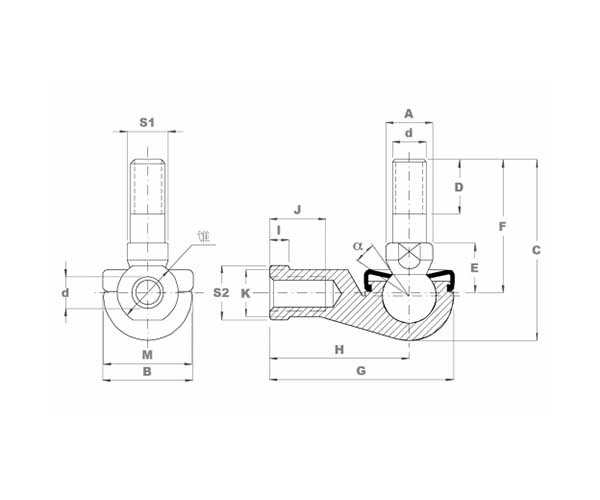

J (mm) 14
H (mm) 30
b (mm) 20
A (mm) 10
C (mm) 35.5
Load Stat (kN) 4
G - UNF 1/4-28
L (mm) 13
g (mm) 40
E (mm) 11
S2 (mm) 11
α Degree 25
M (mm) 19
k (mm) 10
D (mm) 11
F (mm) 26
S1 (mm) 8
I (mm) 5

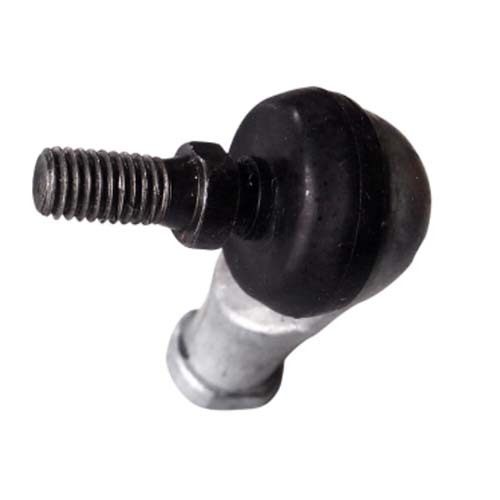

• Type Studded Rod End
