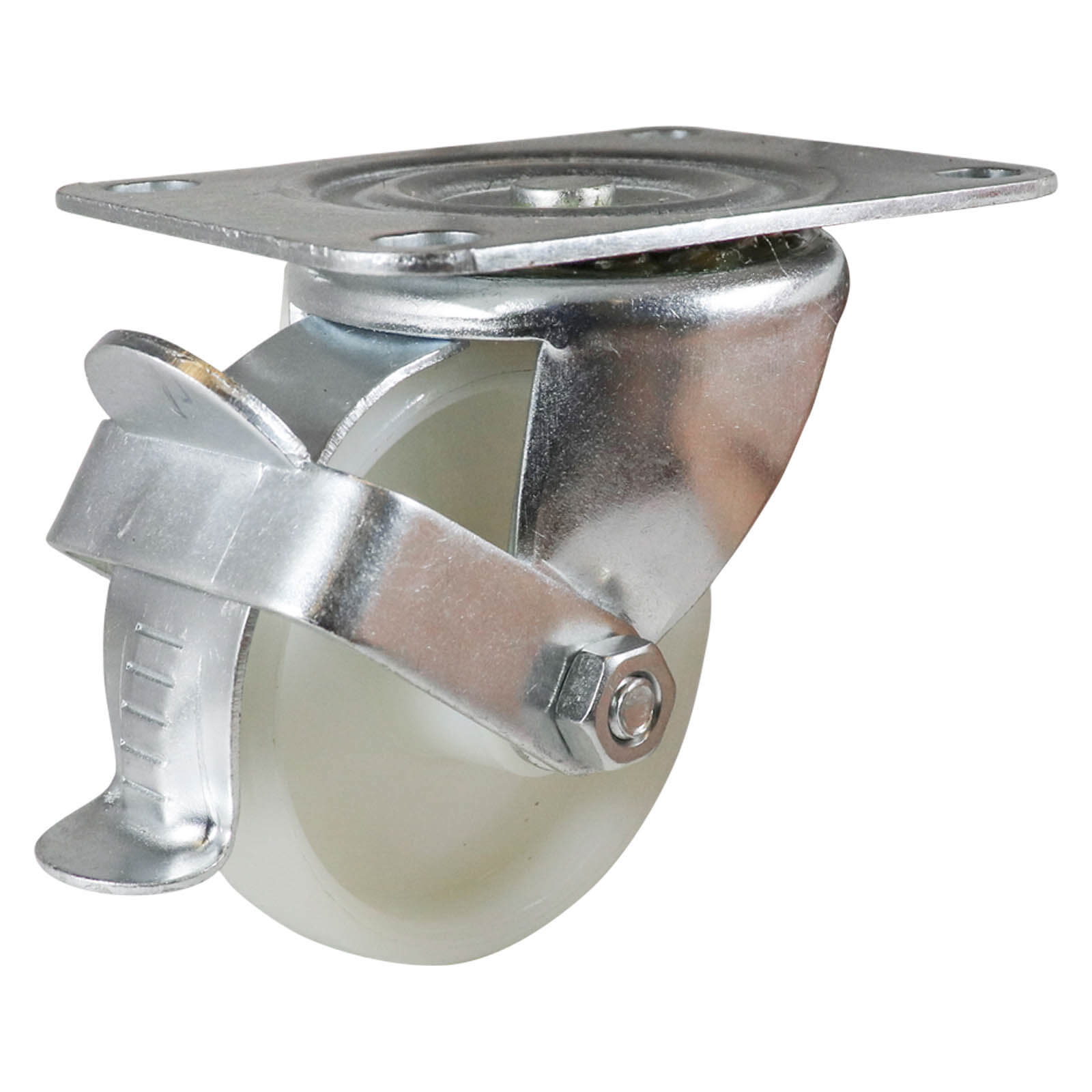

EasyRoll I1 Series Swivel Plate Castor with Brake - Nylon Wheel, White | I12W02G75

The EasyRoll I1 series swivel plate castor with brake is fitted with a white nylon wheel and is available in a 75 mm wheel diameter. Load capacity is 120 kg per castor. The top plate is 105 x 80 mm with hole centres of 80-86 x 60 mm.

The I1 series is suited to tool boxes; engine cranes and gearbox dollies; and workshop equipment. It has single headset bearing.

Where this product is used

• Tool boxes
• Engine cranes and gearbox dollies
• Workshop equipment
• Roll pallets, trolleys, drum and floor dollies
• Vending machines and arcade games
• General materials handling equipment

Features

• White nylon wheel in 75 mm
• Load capacity 120 kg per castor
• Wheel brake stops the wheel rotating, and the castor can still swivel
• Robust, simple industrial design
• Large diameter single headset bearing for strength with a low overall height

Key specifications

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. A wheel brake only stops the wheel from rotating, and the castor can still swivel freely. EHI cautions that wheel braked castors should never be fitted to a bench or table holding power tools or cutting instruments, because the table can move up to twice the castor offset with the brake applied. EHI rates nylon wheels as follows: fair shock absorbency and floor protection, excellent load capacity and push effort and good durability. It suits smooth concrete, is strong and economical and may be noisy. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
