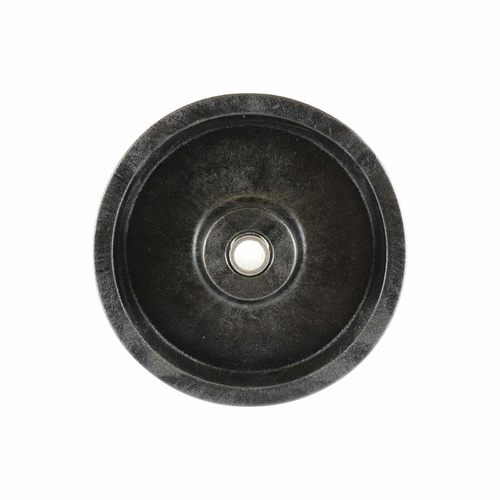

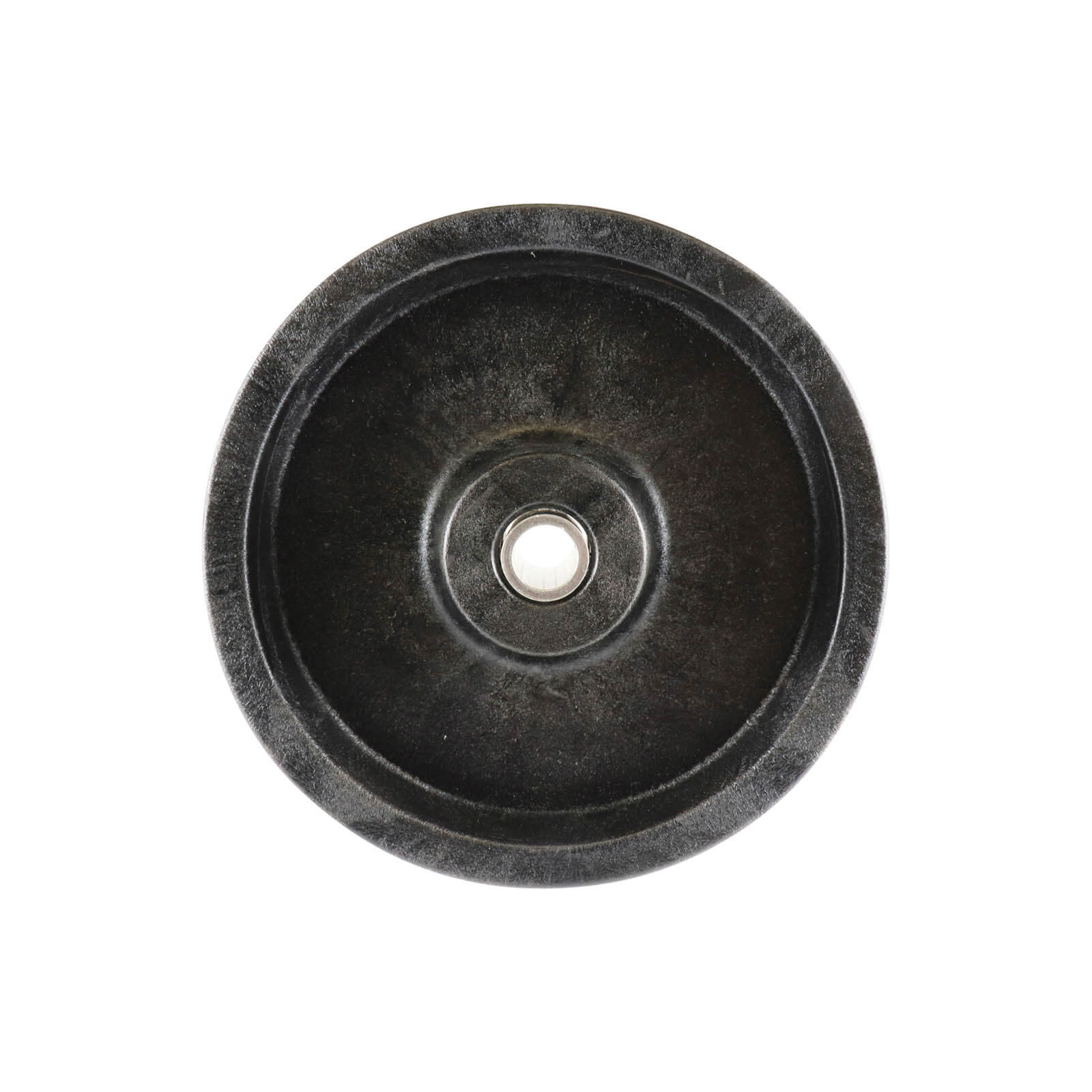

EasyRoll High Temperature Wheel with Axle Tube - Plain Bearing, 100 mm | STW100

The EasyRoll STW100 is a 100 mm high temperature wheel with an axle tube and a plain bearing. It has a 35 mm tread, a 12 mm bore with an 8 mm bush ID and a load capacity of 180 kg per wheel (manufacturer-stated).

The catalogue lists the size, load and bearing for this wheel but does not state a temperature rating for the wheel on its own. Confirm the working temperature, and how long the wheel will sit at that temperature, with AIMS before you order.

Where this product is used

• Equipment that works in hot areas (confirm the temperature with AIMS)
• Replacement high temperature wheels

Features

• 100 mm diameter, 35 mm tread
• Load capacity 180 kg per wheel (manufacturer-stated)
• Plain bearings
• High temperature wheel with an axle tube (confirm the temperature rating with AIMS)

Key specifications

Selecting the right option

Work out the temperature at the wheel, and how long it stays at that temperature, before choosing it. The catalogue does not give a temperature rating for the wheel on its own, so confirm it with AIMS. Check the bore ID against your axle, the hub length against the space in your fork or frame, and the load capacity per wheel against the total load shared across all the wheels. The bore ID and bush ID are as listed by EHI, so confirm the axle size you need with AIMS before ordering. Plain bearings consist of a bearing shell solidly connected with the wheel, which turns around an axle tube bolted to the housing. EHI states that under normal conditions they are maintenance free and corrosion resistant (manufacturer-stated). Load capacity is shown per wheel (manufacturer-stated). For castors on a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries (manufacturer-stated). If you are unsure which wheel suits your application, contact AIMS with the load, the floor type and how the equipment is used.
