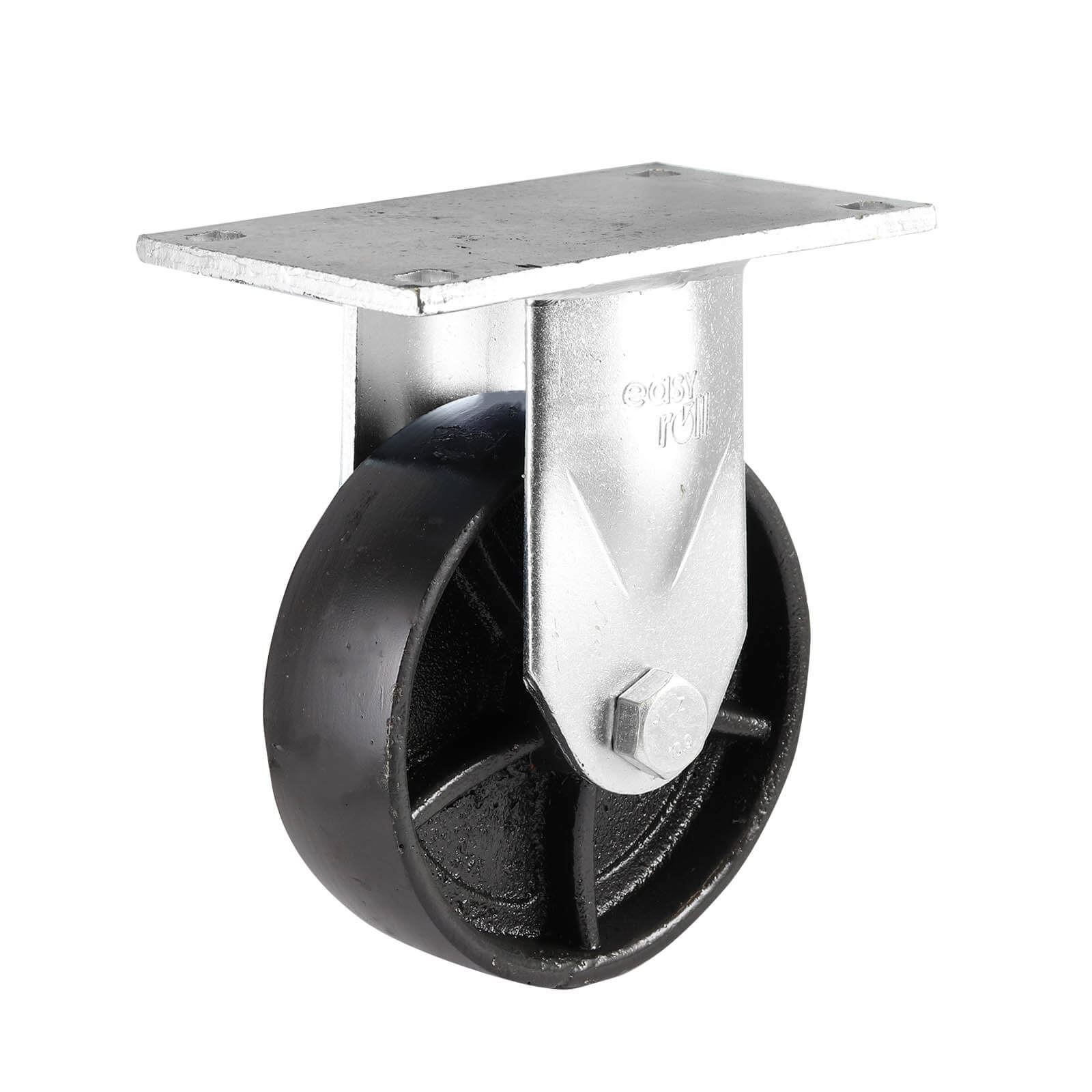

EasyRoll J7 Fixed Plate Castor, Black Cast Iron 150 mm | J73AZ82G150

The EasyRoll J7 series fixed plate castor is fitted with a black cast iron wheel and is available in a 150 mm wheel diameter. Load capacity is 500 kg per castor. The top plate is 178 x 102 mm with hole centres of 152 x 76 mm.

The J7 series is suited to waste bins, mobile work benches and heavy machinery.

Where this product is used

• Waste bins
• Mobile work benches
• Heavy machinery
• Mining, construction, military and airport equipment
• Warehousing

Features

• Black cast iron wheel in 150 mm
• Load capacity 500 kg per castor
• 5/8 in high tensile axle bolt to handle high impact loads
• Heavy duty fabricated construction with a double welded fork
• Enlarged top plate holes for faster installation
• Head seal keeps dust and grit out

Key specifications

Selecting the right option

A swivel castor turns to follow the direction of travel and a fixed castor rolls in a straight line, so many trolleys use fixed castors at one end and swivel castors at the other. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h (manufacturer-stated). The capacity of a trolley is not the sum of its castors: for a four wheel trolley EHI recommends each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries. If you are unsure which castor suits your application, contact AIMS with the load, the floor type and how the equipment is used.
