Sutton E536 4mm Endmill 4 Flute - Carbide VHM Ultra - AlCrN - Regular
Available

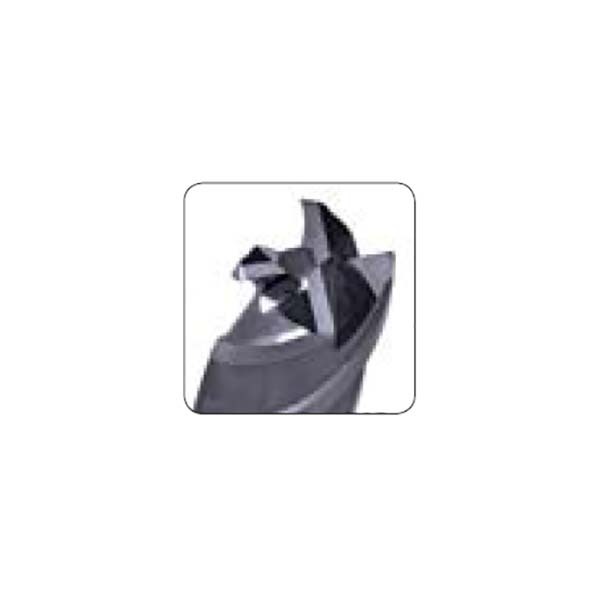

The Sutton E536 is a 4 flute endmill made from VHM-ULTRA grade solid carbide, with an AlCrN coating. It is in the regular length series. This listing covers 12 metric sizes from 3 mm to 25 mm.
The cutting edge has a 35/38° variable helix and the designation is UNI. The shank is a cylindrical shank with Weldon flat (DIN 6535 form HB), with h6 shank tolerance and e8 cutting diameter tolerance. The cutting length is to DIN 6527 L. Sizes with a relieved neck show the reach length (l3) and neck diameter (d3) in the size table.
Where this product is used
- Universal use for slotting and finishing with one tool.
Design features
- VHM-ULTRA grade solid carbide construction.
- AlCrN coating for longer tool life.
- 4 flutes, 35/38° variable helix.
- Cylindrical shank with Weldon flat (DIN 6535 form HB).
- Tolerances: cutting diameter (d1) e8, shank h6.
Sizes
Diameters and lengths are in millimetres. Item numbers are the Sutton catalogue numbers.

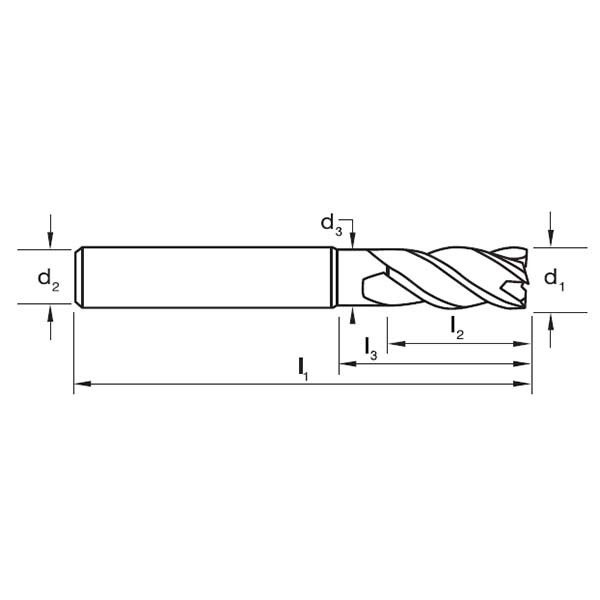

| Item no. | d1 (mm) | l1 overall (mm) | l2 flute (mm) | l3 reach (mm) | d2 shank (mm) | d3 neck (mm) | Flutes | Corner radius (mm) |
|---|---|---|---|---|---|---|---|---|
| E536 0300 | 3 | 57 | 8 | 19 | 6 | 2.8 | 4 | 0.04/0.08 |
| E536 0400 | 4 | 57 | 11 | 19 | 6 | 3.7 | 4 | 0.04/0.08 |
| E536 0500 | 5 | 57 | 13 | 20 | 6 | 4.6 | 4 | 0.08/0.12 |
| E536 0600 | 6 | 57 | 13 | 21 | 6 | 5.5 | 4 | 0.08/0.12 |
| E536 0800 | 8 | 63 | 19 | 27 | 8 | 7.5 | 4 | 0.08/0.12 |
| E536 1000 | 10 | 72 | 22 | 32 | 10 | 9.5 | 4 | 0.15/0.25 |
| E536 1200 | 12 | 83 | 26 | 38 | 12 | 11.2 | 4 | 0.15/0.25 |
| E536 1400 | 14 | 83 | 26 | 38 | 14 | 13 | 4 | 0.25/0.35 |
| E536 1600 | 16 | 92 | 32 | 44 | 16 | 15 | 4 | 0.25/0.35 |
| E536 1800 | 18 | 92 | 32 | 44 | 18 | 17 | 4 | 0.25/0.35 |
| E536 2000 | 20 | 104 | 38 | 54 | 20 | 19 | 4 | 0.25/0.35 |
| E536 2500 | 25 | 120 | 45 | 64 | 25 | 24 | 4 | 0.40/0.50 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | E536 |
| Type | Endmill, 4 flute, regular length |
| Material | VHM-ULTRA solid carbide |
| Finish | AlCrN |
| Helix / geometry | R35/38 |
| Designation | UNI |
| Shank form | cylindrical shank with Weldon flat (DIN 6535 form HB) |
| Cutting diameter tolerance (d1) | e8 |
| Shank tolerance | h6 |
| Cutting length | DIN 6527 L |
| Sizes in this listing | 12 sizes, 3 to 25 mm |
Related products
Related Sutton carbide endmills: E535 metric endmill (regular), AlCrN, plain shank, E572 imperial endmill (regular), AlCrN, plain shank, E534 metric endmill (stub), AlCrN, Weldon flat shank, E533 metric endmill (stub), AlCrN, plain shank, E543 20 mm endmill (regular), AlCrN, plain shank.
