Description

2 Flute Slot Drill - R30 N - Regular - Tecline

  • Suitable for materials up to 1600 N/mm2
  • TiAlN for longer tool life

Specifications

  • Designation: N
  • Material: VHM
  • Finish: TiAlN
  • Shank Form: HA
  • Helix Angle: R30
  • Point Tolerance: h10
  • Shank Tolerance: h6
  • Point Form: Square End
  • Type: N (finishing)
  • Standard: DIN6527K
  • Rake Angle: 12

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)-125HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-190HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)-250HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-270HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)-300HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-180HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-275HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements-300HB
  • Optimal for Steel - High alloy, cast & tool-200HB
  • Optimal for Steel - Corrosion resistant & cast - Ferritic / Martensitic-200HB
  • Optimal for Steel - Corrosion resistant & cast - Martensitic-240HB
  • Optimal for Stainless Steel - Austenitic-180HB
  • Optimal for Cast Iron, Grey (GG) - Ferritic / Pearlitic-180HB
  • Optimal for Cast Iron, Grey (GG) - Pearlitic-260HB
  • Optimal for Cast Iron, Nodular (GGG) - Ferritic-160HB
  • Optimal for Cast Iron, Nodular (GGG) - Pearlitic-250HB
  • Optimal for Cast Iron, Malleable - Ferritic-130HB
  • Optimal for Cast Iron, Malleable - Pearlitic-230HB

Specifications

  • AIMS SKU A0130360
  • Brand Sutton Tools
  • Model Number E5060600
  • Barcode Number 9311963501017
  • System of Measurement DIN6527L
  • Cutting Tip (mm) 6
  • Overall Length (mm) 57
  • Shank (mm) 6
  • Flute Length (mm) 10
  • Helix Angle R30
  • Item Type N (finishing)
  • Point Form Square End
  • Point Tolerance h10
  • Shank Form HA
  • Rake Angle 12
  • Shank Tolerance h6
  • Type Slot Drill Tecline
  • Material Sub-Micron Grade Solid Carbide (VHM-ISO K40)
  • Finish Titanium Aluminium Nitride (TiAIN)
  • Flutes 2
  • Group Code E506
SKU: A0130360

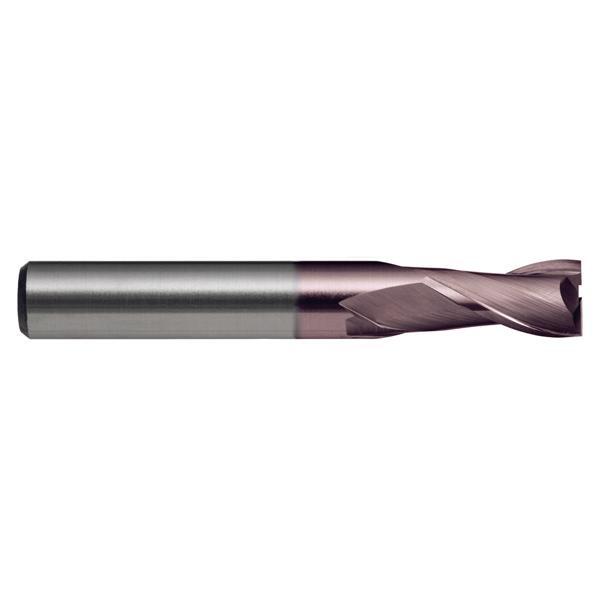

Sutton E5060600 6 x 57mm 2 Flute Slot Drill Carbide TiAlN Regular Tecline

2 Flute Slot Drill - R30 N - Regular - Tecline
