Description

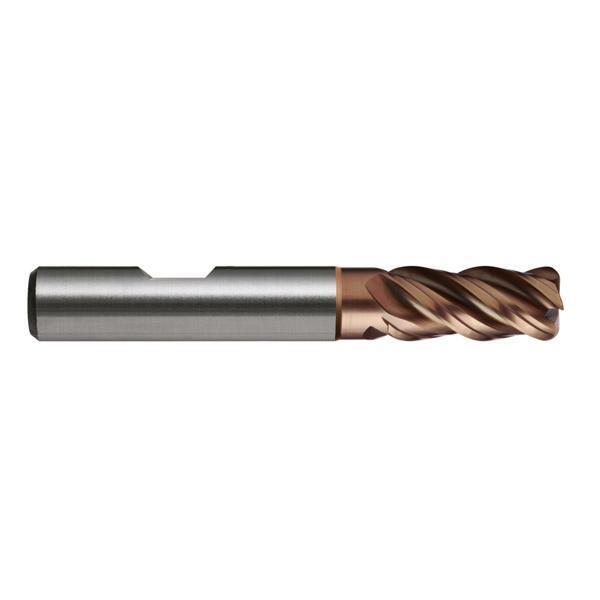

4 Flute Endmill - R40/42 VA - Corner Radius - Regular - Harmony

  • Suitable for slotting, side cutting and finishing applications with the one tool
  • Optimized geometry with variable helix design ensures high productivity
  • Excellent solution for stainless steels & difficult super alloy type materials

Features

  • VHM-ULTRA grade of carbide for high performance
  • HELICA for outstanding oxidation resistance and hot hardness

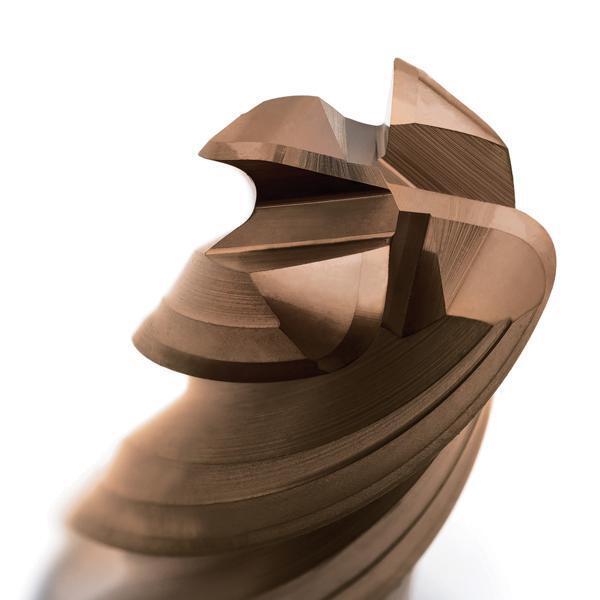

  • The end-teeth geometry has high relief & chip space to enable an efficient process, without the need to drill a hole

Specifications

  • Designation: VA
  • Material: VHM-ULTRA
  • Finish: Helica
  • Shank Form: HB
  • Helix Angle: R40/42
  • Point Tolerance: e8
  • Shank Tolerance: h6
  • Point Form: Corner Radius
  • Type: N (finishing)
  • Rake Angle: 12
  • Standard: DIN6527L

Applications

  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Stainless Steel – Duplex- 250 HB
  • Optimal for Stainless Steel - Precipitation Hardening- 250 HB
  • Optimal for High temperature alloys - Fe based – 280 HB
  • Optimal for High temperature alloys - Ni / Co based – 350 HB
  • Optimal for High temperature alloys - Ni / Co based – 320 HB
  • Optimal for Titanium & Titanium alloys - Alpha alloys
  • Optimal for Titanium & Titanium alloys - Alpha / Beta alloys
SKU: A0130313

Sutton E4630603 6 x 57mm 4 Flute Corner Radius Endmill 0.3° Carbide Helical HB

4 Flute Endmill - R40/42 VA - Corner Radius - Regular -

$53.96

How it works.

Make 4 payments of $13.49 over 8 weeks and get it now!


Buy now, pay later.

Choose a different size/variant

Specifications

  • AIMS SKU A0130313
  • Brand Sutton Tools
  • Model Number E4630603
  • Barcode Number 9311963595962
  • System of Measurement DIN6527L

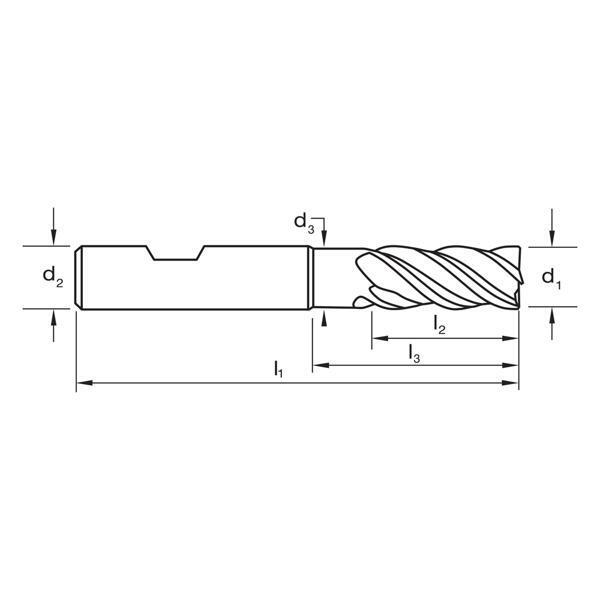

  • Cutting Tip (mm) 6
  • Overall Length (mm) 57
  • Shank (mm) 6
  • Flute Length (mm) 13
  • Helix Angle R40/42
  • Reach Length L3 (mm) 21
  • Rake Angle 12
  • D3 (mm) 5.5
  • Shank Form HB
  • Item Type N (finishing)
  • Shank Tolerance h6
  • Rad 0.3
  • Point Tolerance e8
  • Point Form Corner Radius
  • Type Endmill Harmony
  • Material Sub-Micron Grade Solid Carbide (VHM ULTRA -ISO K40-K50)
  • Finish Helica
  • Flutes 4
  • Group Code E463
