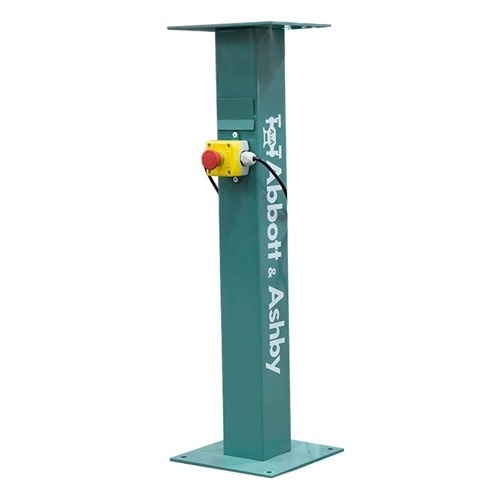

Abbott & Ashby ATPED-HDK+ESTOP E-Stop and Pedestal Kit, 860 mm High, 16.0 kg

The Abbott & Ashby ATPED-HDK+ESTOP is the heavy duty bench grinder pedestal supplied as a kit with an E-Stop push button, listed at 860 mm high and 16.0 kg. The catalogue says assembly is required to mount the E-Stop button to the pedestal (manufacturer-stated).

The product listing describes a push stop button for quick knee operation that can convert any 10Amp machine to have an emergency stop, and the catalogue says the E-Stop complies with AS/NZS IEC 60947 standard (manufacturer-stated). The heavy duty steel sections support both 6" (150mm) and 8" (200mm) bench grinders, with a bucket holder on the front (manufacturer-stated).

Where this product is used

• Mounting a 6" (150mm) or 8" (200mm) bench grinder on a stand with a push stop button in reach of the knee (manufacturer-stated).
• Adding an emergency stop to a 10Amp machine: the product listing says the button can convert any 10Amp machine to have one (manufacturer-stated).

Features

• Heavy duty pedestal and E-Stop push button supplied as a kit (manufacturer-stated)
• Push stop button for quick knee operation (manufacturer-stated)
• Can convert any 10Amp machine to have an emergency stop (manufacturer-stated)
• E-Stop complies with AS/NZS IEC 60947 standard (manufacturer-stated)
• Heavy duty steel sections support both 6" (150mm) and 8" (200mm) bench grinders (manufacturer-stated)
• Height 860 mm, weight 16.0 kg (catalogue)

Key specifications

Selecting the right option

Height and weight are catalogue figures (Abbott & Ashby Catalogue 2025, p33). Choose ATPED-HDK for the pedestal alone (14.0 kg), ATPED-HDK+ESTOP for the pedestal with the E-Stop (16.0 kg), or ATPED-ESTOP if you already have a pedestal. the product listing says the E-Stop can convert any 10Amp machine, while the store title of the separate button ATPED-ESTOP says it suits 240V / 1PH motors only, so check your machine's supply and current before ordering. Electrical parts should be fitted by a licensed electrician.
