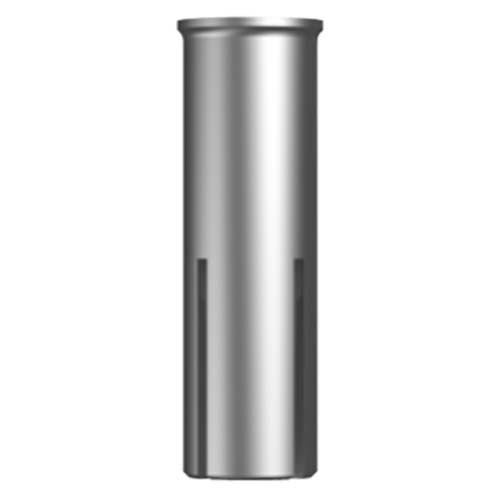

M8 x 30mm Drop-In Pro Anchor With Lip Fire Rated Zinc Plated

Drop-In Pro Anchor With Lip Fire Rated Zinc Plated is a industrial fastener from Hobson in a zinc plated finish, manufactured to EN 1992-4:2018, ETA 19/0673.

Where this product is used

• Suited to static or quasi-static structural fixing into reinforced or unreinforced normal-weight concrete in dry internal conditions, where a lipped, fire-rated, ETA-approved drop-in anchor is needed - for example, where a flush surface finish matters.

Product features

• Deformation-controlled expansion anchor with a lip that sits flush with, or slightly proud of, the concrete surface to stop over-driving
• ETA 19/0673 approved, designed to EN 1992-4:2018 (design method A)
• Class A1 reaction-to-fire rating per EN 13823
• Zinc plating ≥5 micron per ISO 4042
• Suited to uncracked concrete, strength classes C20/25 to C50/60
• Assumed minimum 50-year working life

Key specifications

Selecting the right option

Choose by grade or class to match your design load, by finish for the service environment (plain or zinc for general indoor use, hot-dip galvanised for outdoor and corrosive conditions), and by size to suit your joint. Contact the AIMS team if you need help specifying to an engineer's drawing or a particular Australian Standard.
