Description

Angular Contact Ball Bearings

  • Single row extra light, light & medium series bearings for combined radial and one directional axial load.
  • Angular contact ball bearings can sustain combined loads of simultaneously acting radial and axial loads because they have a contact angle.
  • The contact angle is defined as the angle between the line joining the points of contact between the ball and the raceways in the radial plane.

Specifications

  • AIMS SKU A0105445
  • Brand NACHI
  • Model Number 5204/NACHI
  • Bore Diameter x Outer Diameter x Width (mm) 20 x 47 x 20.6

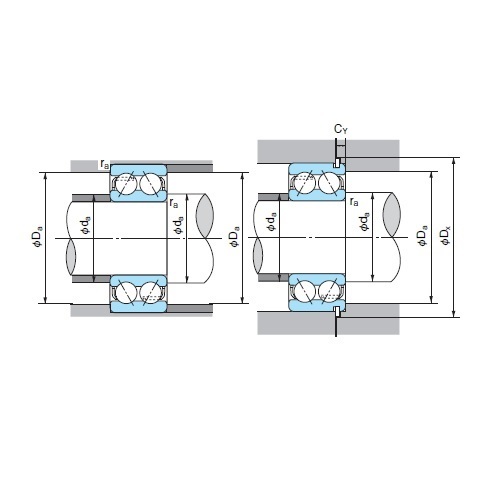

  • Abutment And Fillet Dimension Da (min) Mm 26
  • Basic Dynamic Load Rating (n) 20000
  • Abutment And Fillet Dimension Ra (max) Mm 1
  • Limiting Speed (rpm) Oil Lubrication 14000
  • R (min) 1
  • Abutment And Fillet Dimension Da (max) Mm 41
  • Limiting Speed (rpm) Grease Lubrication 10000
  • Type Angular Contact Ball Bearings
  • System of Measurement Metric
  • Series No. 5200 - 5300
SKU: A0105445

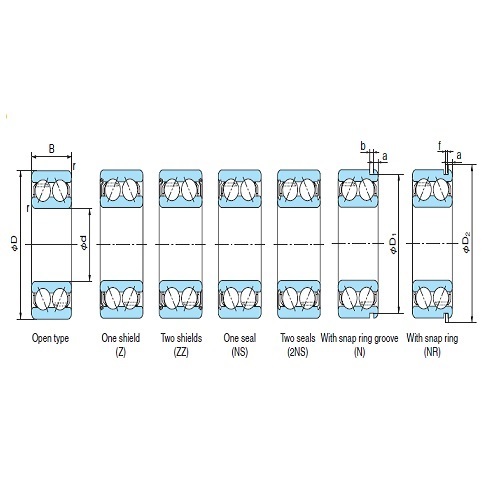

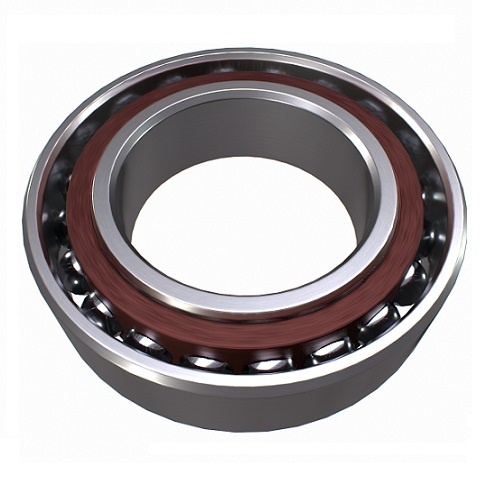

NACHI 5204 Angular Contact Ball Bearings 5200-5300 OPEN Series 20 x 47 x 20.6mm

Double-row Angular Contact Ball Bearings 5200-5300 OPEN

$22.77
