Description

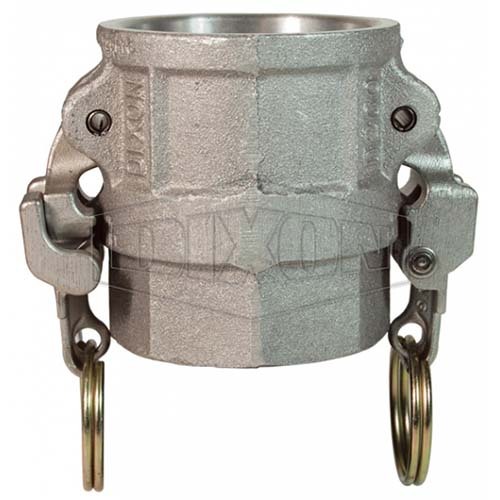

Dixon Stainless Steel EZ Boss-Lock Cam & Groove Type D Coupler x Female BSP

Applications

The Dixon Cam & Groove coupling is a reliable quick connect coupling for use on a hose; pipe; tubing and tanks conveying a wide variety of liquids; dry bulk materials and vapors including cooling water; fuels; chemicals; cosmetics; food products; adhesives; dyes; pharmaceuticals; pellets and much more.

Use

Designed for use with liquids

Features

Resistant to accidental disconnection when dragged. The release lever opens in the direction opposite to the cam arm; so movements that tend to open the release lever also tend to close the cam arm.
Rotating action helps keep the locking device free of debris.
Designed to protect critical parts from impact and to withstand rugged use.

How it works

To make a connection; simply slide the adapter into the coupler and with normal hand pressure; press the cam levers down.
Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
No more fumbling with clamps; wire; clips or pins; just close the handles and the locking mechanism is engaged.
Extremely easy to open; the releaser lever is under your thumb when you want to open the fitting; ergonomic.

Note

If the rotating lever is not flush with the handle; it is not properly engaged.

Safety notes

Under no circumstances should cam and groove couplings be used for compressed air or steam service!
Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use.
Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F/21°C with a standard seal installed.
