Description

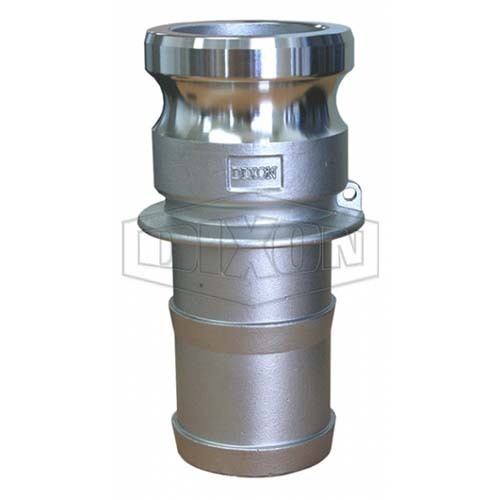

Dixon Stainless Steel Standard BSP Cam & Groove Type E Adaptor x Hose Shank

Applications

  • The Dixon Cam & Groove coupling is a reliable quick connect coupling for use on a hose; pipe; tubing and tanks conveying a wide variety of liquids; dry bulk materials and vapors including cooling water; fuels; chemicals; cosmetics; food products; adhesives; dyes; pharmaceuticals; pellets and much more.

Use

  • Designed for use with liquids

How it works

  • The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The two cam arms are then closed under normal hand pressure to complete the joint.

Safety notes

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F/21°C with a standard seal installed.
  • Pressure rating is based on the seal of the mating part

About Dixon

Dixon is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Dixon, founded in 1916.

  • Global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
  • Dixon's strategic objective is to create solutions that make products safer, leak-free, longer-lasting, and always available.

Specifications

  • AIMS SKU A0071142
  • Brand Dixon
  • Model Number SS075E
  • Size (mm) 20
  • Distance Across Flat (C) mm 21
  • Maximum Operating Pressure (PSI) 250
  • Adaptor Length (B) mm 53
  • Maximum Working Pressure 250 psi
  • Overall Length (A) mm 91.5
  • Weight (kg) 0.16
  • Type Camlock Adapter
  • Material Stainless Steel
SKU: A0071142 On Sale

Dixon 20mm Stainless Steel BSP Cam & Groove Type E Adaptor x Hose Shank

Dixon Cam & Groove Type E Adaptor x Hose Shank Stainless

$13.77
$16.20
