Description

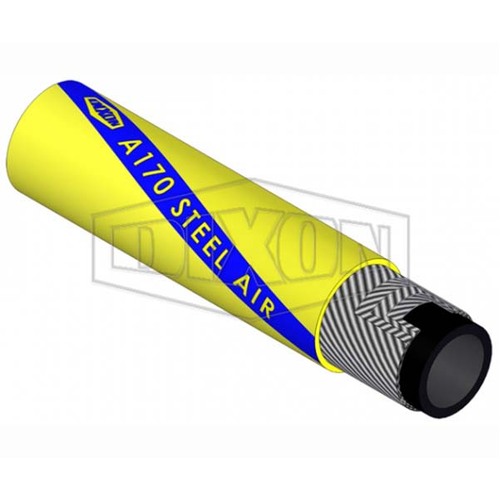

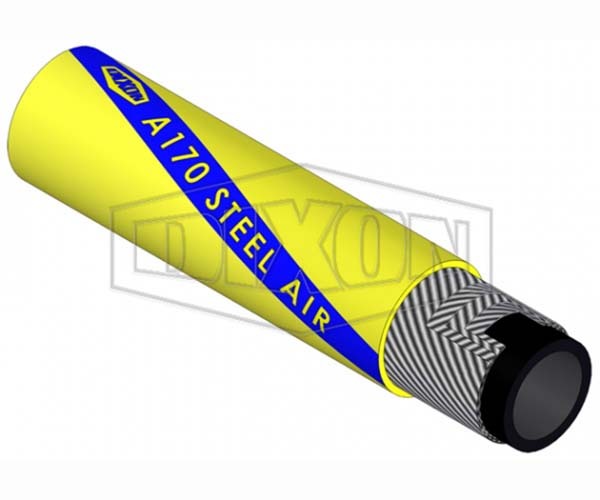

Dixon Rubber Steel Heavy Duty Air Hose

  • Minimum Cut Length: 10 metres
  • Standard Coil Length: 20 metres

Applications

  • Designed for the most severe working conditions in mining, quarries, industrial and construction service.
  • It has a high margin of safety and gives a long and trouble-free service under the most rugged working conditions.

Construction

  • Lining / Tube: Synthetic NBR rubber ,resistant to oil-mist mixed air and inert fluids
  • Reinforcement: High tensile steel wire
  • Cover: Abrasion, ozone and weather resistant pin pricked synthetic rubber

Features

  • Ozone resistance

Specifications

  • ISO 1307

Branding

  • DIXON A170 HD STEEL AIR

Safety Notes

  • Bend radius figure is calculated as theoretical

Specifications

  • AIMS SKU A0068343C20
  • Brand Dixon
  • Model Number A17006520
  • Hose Length 20 m
  • Application Air & Water
  • Burst Pressure 2320 psi
  • Color Yellow
  • Working Pressure (psi) 580
  • Temperature Range -40°C to 70°C
  • Weight kg/m 3.36
  • Hose ID (mm) 63.5
  • Bend Radius (mm) 315
  • Working Pressure (bar) 40
  • Hose Outside Diameter (mm) 80
  • Burst Pressure Bar 160
  • Type Heavy Duty Air Hose
  • Material Synthetic Rubber
SKU: A0068343C20

Dixon 63.5mm x 20m Rubber Steel Heavy Duty Air Hose Yellow A17006520

Dixon Rubber Steel Heavy Duty Air Hose

$2,417.40
