Description

Dixon Rubber General Purpose Black Hose

Applications

  • General Purpose Black is made to handle many special purpose air and water applications. This quality versatile hose meets the requirements for the industrial, construction and agricultural markets where oil is not considered a significant factor.

Features

  • UV stabilised

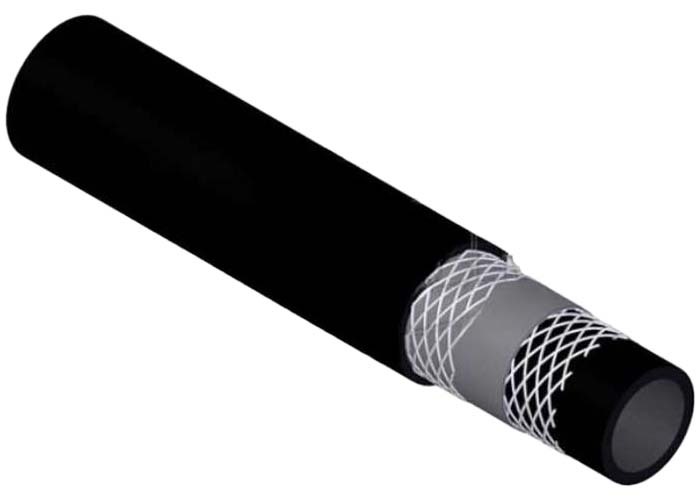

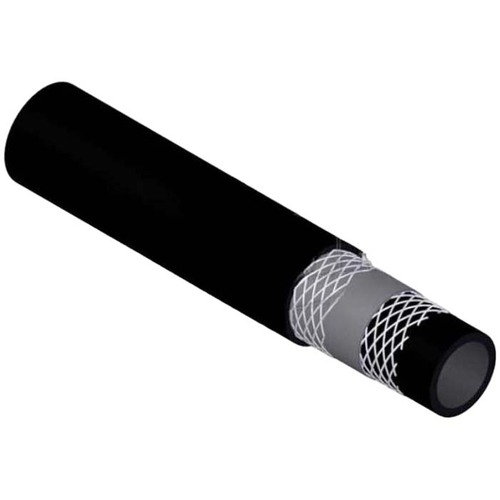

Construction

  • Tube: NR / SBR blend
  • Cover: EPDM / SBR blend
  • Reinforcement: 2 and 4 spiral polyester yarn

Available Lengths

  • Cut Lenght: 10 m
  • Coil Length: 20 m
  • Reel Length: 100 m and 200 m (2 x 100m per reel)

***Note: For the 200 m, there are 2 pieces of 100m tied together by string to allow spooling onto the reel. Continuous length of 200m is not available.***

Specifications

  • AIMS SKU A0068273CUT
  • Brand Dixon
  • Model Number A101025
  • Hose Length 10 m
  • Application Air & Water
  • Bend Radius (mm) 150
  • Working Pressure (mpa) 1.4
  • Color Black
  • Hose ID (mm) 25
  • Temperature Range -20°C to 90°C
  • Burst Pressure 696 psi
  • Hose Outside Diameter (mm) 36.5
  • Weight kg/m 0.99
  • Working Pressure (psi) 200
  • Type General Purpose Black Hose
  • Material EPDM
SKU: A0068273CUT

Dixon 25mm x 10m Rubber General Purpose Black Hose A101025

Dixon Rubber General Purpose Black Hose

$164.05
