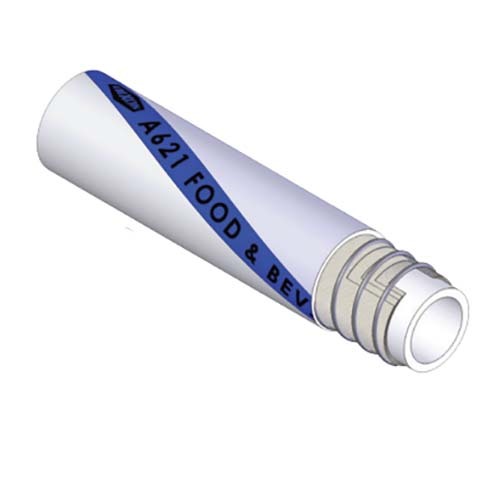

Dixon Rubber Food, Milk & Beverage Suction & Delivery Hose
Out of stock
Service temperature For oily products -40°C to 120°C., suitable for the conditions on real industrial sites. Rated to 1","Color: White","Hose Outside Diameter (mm): 90","Weight kg/m: 2.89","Application: Food & Alcohol","Working Pressure (psi): 150","Hose Length: 20 m","Burst Pressure: 450 psi","Hose Inside Diameter (mm): 76","Vacuum Rating M/h20: 9","Bend Radius (mm): 300"], so you can match it to line pressure with confidence. Construction. Tube: White, smooth food quality rubber. In accordance with FDA and 3A sanitary standards, NBR / EPDM blend. Cover: Blue/White, smooth (wrapped finish) synthetic rubber, abrasion and ozone resistant. CR - Neoprene. Reinforcement: High strength synthetic cord plus helix wire. Available Lengths. Cut Length: 5 m. Coil Length: 20 m.
Key Specifications
| "Temperature Range | For oily products -40°C to 120°C. |
| For non-oily products -30°C to 100°C","Working Pressure (mpa) | 1","Color: White","Hose Outside Diameter (mm): 90","Weight kg/m: 2.89","Application: Food & Alcohol","Working Pressure (psi): 150","Hose Length: 20 m","Burst Pressure: 450 psi","Hose Inside Diameter (mm): 76","Vacuum Rating M/h20: 9","Bend Radius (mm): 300" |
Where This Is Used
- Special food suction and discharge hose, particularly suitable for transferring milk, wine, beer and potable water either in-plant or tank truck service.
- Up to 96% alcohol.
Resources
