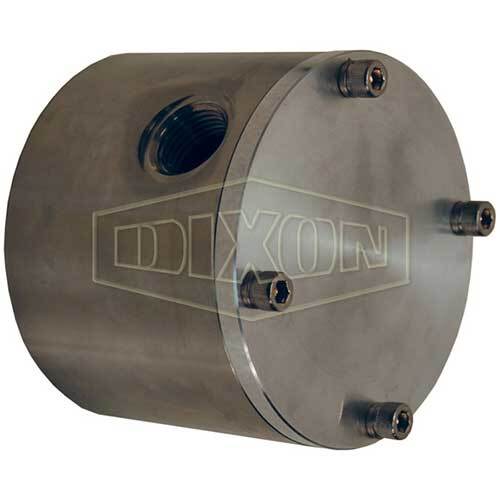

Probe Housing FloTech Checkmate Overfill Detection

• Probe housing.
• Used with parts FT150S & FT100S - Overfill Detection Probes

Applications

• The FloTech stainless steel probes and sensor housings are designed to be used with chemicals.

Use

• These probes are designed to thread onto a DOT 407 tank 3" clean-out nipple.
• The sensor length can be adjusted using 3/4" NPT pipe nipples.
• Overfill Only

Features

• All FloTech brand probes are trouble-free probes, they come with a unique dual elastomer seal for the glass optic prisms.
• The elastomer seals are flexible allowing thermal expansion and resistance to steam cleaning and temperature changes, along with resistance to petroleum chemical attack.
• The replacement probes have a smooth tapered tip design for easy replacement installation into the sensor housing without gasket damage.

Construction

• All wetted services are 316 stainless or PTFE.

Available option

• Custom probe lengths are available upon request.

Note

• Housing only, order probe separately
• All FloTech™ electronics manufactured after January 1, 2015, are covered by our 5-year warranty.
