***Special Order on PPD200A. Contact AIMS for lead time.***

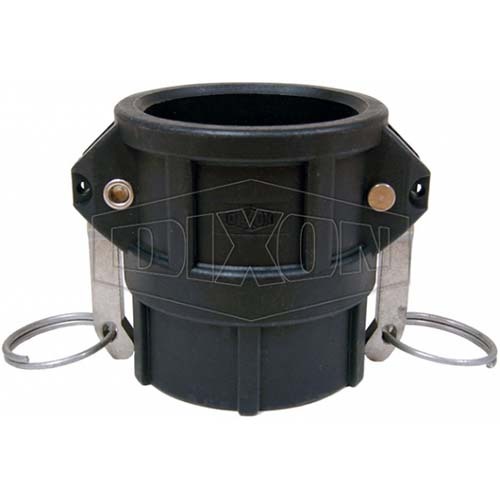

Dixon Polypropylene Cam & Groove Type D Coupler x Female BSP

Applications

  • The Dixon Cam & Groove coupling is a reliable quick connect coupling for use on a hose; pipe; tubing and tanks conveying a wide variety of liquids; dry bulk materials and vapors including cooling water; fuels; chemicals; cosmetics; food products; adhesives; dyes; pharmaceuticals; pellets and much more.

Use

  • Designed for use with liquids

Construction

  • Polypropylene 30% glass filled body with stainless steel levers and pins

How it works

  • The coupling is connected by simply opening the coupler arms and inserting the adapter into the coupler. The two cam arms are then closed under normal hand pressure to complete the joint.

Safety notes

  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F/21°C with a standard seal installed.
  • Polypropylene cam & groove should not be mixed with aluminum fittings.

About Dixon

Dixon is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Dixon, founded in 1916.

  • Global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
  • Dixon's strategic objective is to create solutions that make products safer, leak-free, longer-lasting, and always available.

Specifications

  • AIMS SKU A0070865
  • Brand Dixon
  • Model Number PPD050A
  • Size (mm) 15
  • Seal EPDM
  • Pressure Rating at -18°c 100 psi
  • Pressure Rating at 21°c 125 psi
  • Pressure Rating at 65°c 70 psi
  • Type Camlock Coupler
  • Material Polypropylene
SKU: A0070865

Dixon 15mm Polypropylene Cam & Groove Type D Coupler x Female BSP PPD050A

Dixon Cam & Groove Type D Coupler x Female BSP
