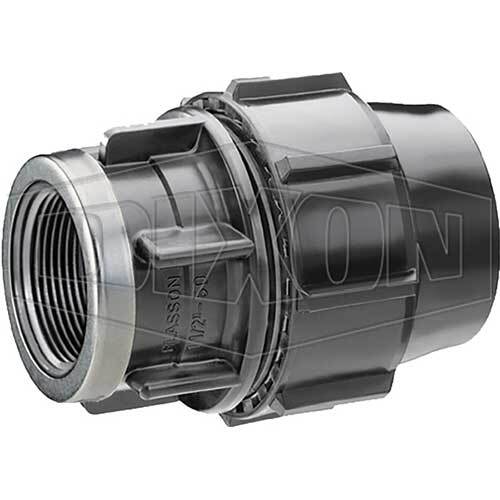

Dixon 63mm Mine Adaptor BSP Polypropylene Female Inlet

• Plasson Compression Fittings
• 2 Split Rings, 2 Seals, 2 Nuts
• Polypropylene, high-grade copolymer
• ISO 17885; AS/NZS419; ISO7-1

Applications

• Plasson Compression Fittings are designed for connecting all forms of PE Pipe.
• Common applications include Underground and Surface Mining; Plumbing; Irrigations; Civil Construction; Gas Installation; Industrial Fluid Transfer and Waste Water Systems.

Use

• Maximum temperature of use for fittings and valves is the same as that for polyethylene pipe and they are not intended for use in hot water applications.
• The will withstand sub-zero temperatures.

Construction

• Polypropylene Body Material.
• S/S Ring on Female BSP Connections.
• Zinc Coated Steel on Flanged connections.

Available Options

• CPVC split rings and EPDM or FPM seals are available.

Compatibility & Interchange Data

• Compatible with all Metric PE Pipe. Not interchangeable with other Poly Compression fittings.

Installation

• Plasson Nut; Split Ring; O-Ring and Insert are placed over PE Pipe and tightened with a Plasson Wrench.
• Depending on the connection point; they can be joined with a BSP Thread connection; flange plate or shouldered coupling.

Note

• For aggressive chemical applications; the end-user is advised to test suitability.
