Description

Applications



  • Recommended applications of these fittings are: concrete pump hose; plaster and grout hose; oil suction and discharge hose; multi-purpose heavy duty air hose; jetting hose; barge loading hose and bottom loading hose.



Use



  • For use with Internal Expansion Ferrules



Features



  • Internally expanded couplings are essential when maximum flow of media is important.
  • Reduces turbulence through hose
  • Excellent sealing and retention characteristics
  • Outperforms band clamps
  • Easy and consistent installation
  • Only one expansion tool is needed for each ID.



Safety notes



  • Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system. Due to differences in dimensions and tolerances; for safety reasons; do not use other manufacturer's stems or ferrules with Dixon Holedall products.
  • Do not use a wrench or vice on ferrule
  • Holedall couplings; regardless of coupling style; are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose; 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Strict adherence to ferrule OD range (Internally Expanded) for each hose end to be assembled is essential for satisfactory performance.
  • Internally Expanded Holedall Couplings are not to be used with plastic lined chemical hose.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
  • Maximum pressure rating recommendations are given at 70°F /21°C



Specifications

  • AIMS SKU A0132119
  • Brand Dixon
  • Model Number IXP24-1
  • Size (mm) 32
  • Maximum Operating Pressure (PSI) 600
  • Type Internal Expansion Stem
  • Material Plated Carbon Steel
  • Style Bevelled End
SKU: A0132119 On Sale

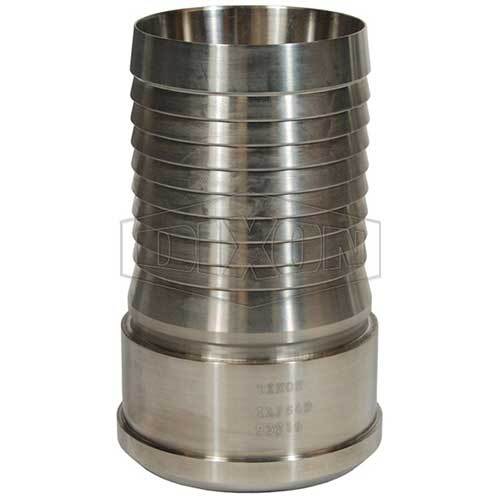

Dixon IXP24-1 40mm Internal Expansion Stem Bevelled End

Dixon Internal Expansion Stem Bevelled End

$31.47
$37.02
