Description

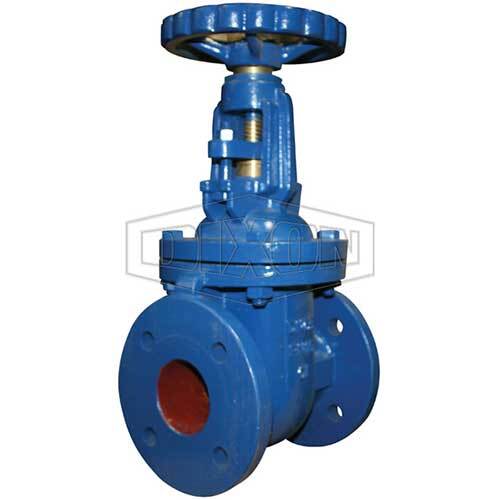

OS & Y Gate Valve Flanged

  • Flanged AS2129 Table D/E End Connection
  • Cast Iron body with a wedge; bronze seat
  • Conforms to BS5150; MSS SP-70.
  • Flange conforms to BS4504 PN 16; ANSI 125 and drilled to Table E.
  • Fig GVRC-1161

Applications

  • Water; oil & gas

Available Options

  • Sizes 250-600mm available on request; contact Dixon for details.

Specifications

  • AIMS SKU A0070332
  • Brand Dixon
  • Model Number GVRC1161-080
  • Size (mm) 80
  • Dimension (mm) 203 Face to Face
  • Pressure Rating (kPa) 1600 at -10°C to 120°C
  • Type Gate Valve
  • Material Cast Iron
  • Item Type Flanged OS & Y Gate Valve
  • Style Flanged Table E
SKU: A0070332

Dixon GVRC1161-080 80mm Flanged OS & Y Gate Valve Cast Iron

Dixon Flanged OS & Y Gate Valve

$575.54
