Description

Dixon Check valve Spring-Loaded Inlet Brass

  • Screwed female BSP conforming to ISO228 (equivalent to DIN259 & BS2779)
  • Body materials: Brass CW 617N; stainless steel spring AISI 302;
  • Nitrile Butadiene rubber seal
  • Full bore

Applications

  • Suitable for industrial; pneumatic and hydraulic installations.
  • Ideal for use with hot or cold water; oils or compressed air.
  • Can be installed in vertical; horizontal or oblique positions.

Specifications

  • AIMS SKU A0069249
  • Brand Dixon
  • Model Number BYCV010
  • Size (mm) 10
  • Thread BSP
  • Working Pressure (mpa) 1.2 MPa
  • Size (inch) 3/8

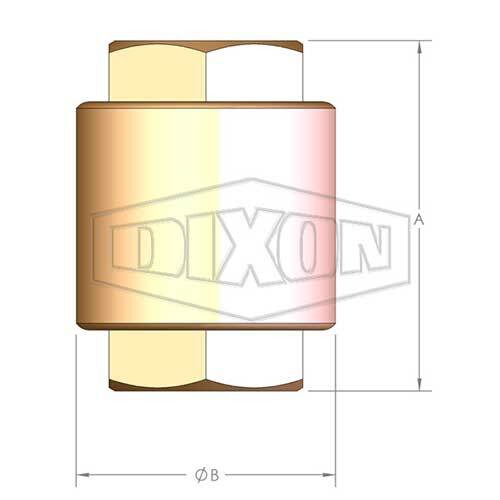

  • Dimension B (mm) 34.5
  • Temperature Range Air: -20°C to 110°C Water: -0°C to 90°C Gas: -20°C to 60°C
  • Dimension A (mm) 46.5
  • Working Pressure (psi) 170
  • Type Check Valve
  • Material Brass
  • Item Type Check Valve Spring-Loaded Inline
  • Seat Nitrile Butadiene Rubber
  • Style York Plastic Stem
SKU: A0069249

Dixon BYCV010 10 mm Check Valve Spring-Loaded Inlet York Plastic Stem

Dixon Check Valve Spring-Loaded Inlet York Plastic Stem
