Description

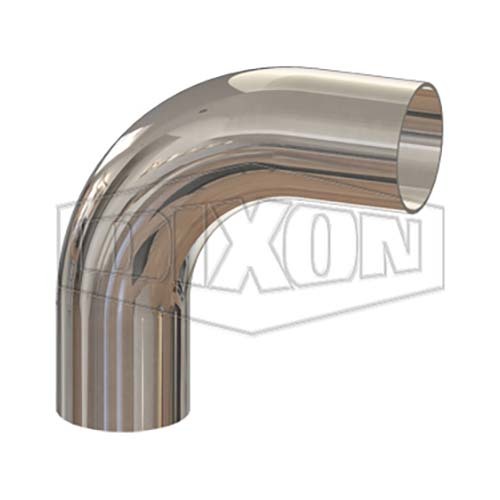

Dixon BioPharm 90° Weld Elbow 316L Stainless Steel PM finish - SF4

Applications

  • High Purity BioPharm fittings are commonly used in pharmaceutical, bioprocessing, semiconductor, cosmetics, food processing and beverage markets

Specifications

  • All fittings are manufactured to meet the latest edition of the ASME BPE International Standard, Bioprocessing Equipment.
  • 316L stainless steel material and dimensions meet all orbital welding specifications with controlled sulphur.
  • 3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
  • PM Finish – SF4 (OD=32R a- ID=15R a)

Note

  • Product markings per ASME BPE 2012 DT-10.1
  • Product markings include: job number, 316L, part number, heat number(s), surface finish code, ASME BPE
  • Per the specification, the size of the fitting may limit the space available for markings. When that occurs, not all markings are included.
  • The part number will describe the part configuration and size.
  • MTR (Material test report) certifications are included inside the resealable bag with each fitting. The MTRs are traceable through the Job Number found on each fitting. All fittings are capped to prevent damage and contamination. For easy identification each finish will have a different color cap; PL finish has blue caps and PM finish has white caps.



Specifications

  • AIMS SKU A0156511
  • Brand Dixon
  • Model Number T2S-300PM
  • Size (inch) 3"
  • Weight (lb) 1.72 lb
  • ID (mm) 0.0729 mm
  • Type Weld Elbow
  • Material 316L Stainless Steel
  • Finish PM finish - SF4
SKU: A0156511

Dixon 3" Weld Elbow 90° BioPharm 316 Stainless Steel PM Finish T2S-300PM

Dixon BioPharm 90° Weld Elbow PM Finish - SF4

$285.81
